PS-1 pump system

Smart Liquid Buffering
The system features integrated tanks that buffer liquid egg, ensuring a steady and controlled flow for downstream processes.
Automated Level Control
Equipped with intelligent sensors, the machine automatically initiates pumping once the liquid reaches the optimal level, preventing overflows and dry runs.
Versatile Integration
Designed for flexibility, the PS-1 seamlessly transports product directly into FS wedge wire filters or dedicated storage containers for streamlined production.

Recommended for industries

Bakery Confectionary Pasta production

Product description

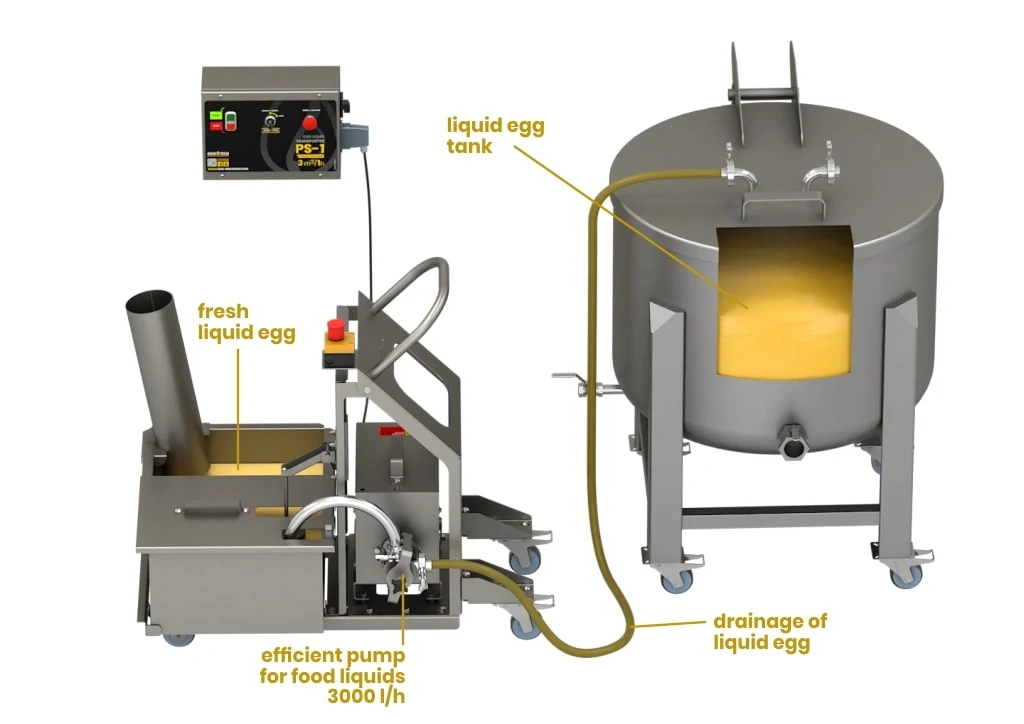

The PS-1 pumping system buffers egg liquid in its tanks. Once the liquid reaches acceptable level, the machine initiates pumping of the egg liquid into the FS wedge wire filter or a storage container.

Technical parameters

Capcity	3000 L/hour 793 gallons/hour
Electricity consumption	0,55-0,75kWh/h
Height	869 / 34
Lenght	813 / 32
Material	INOX EN 1.4301 (AISI 304)
Minimal workspace (mm)	2000 x 1600 / 79 x 63
Noise emission	62 dB
Spare parts	* rotor
Weight (kg/lbs)	66 / 146
Width	664 / 26
