UV disinfection

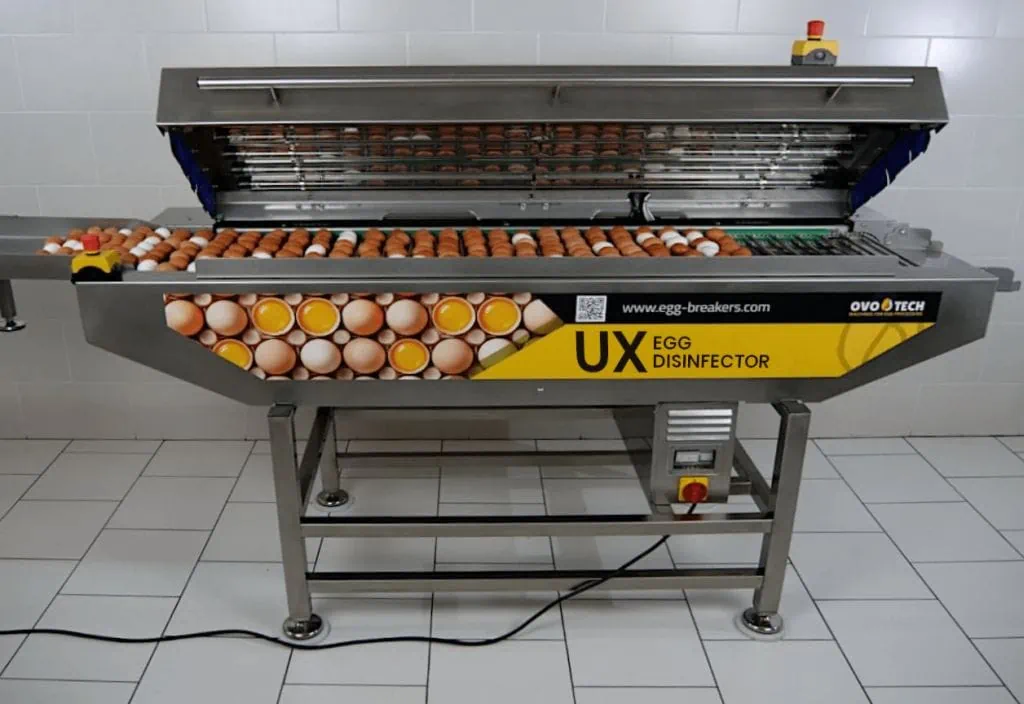

UX-4 flood lamp
-
High-Power Sterilization
The unit emits 950 Watts of cumulative UV-C power to effectively neutralize 100% of bacteria, including Salmonella, on the eggshells. -
Chemical-Free Surface Disinfection
Advanced UV-C technology provides a maximally hygienic, dry method for purifying egg surfaces without the need for water or chemicals. -
Uncompromised Food Safety
By delivering deep surface disinfection, the machine ensures the highest level of biosafety for premium liquid egg production.
Product description
The disinfector emits UV-C light with the cumulative power of 950 Watts, which acts on the eggshells and disinfects them by killing 100% of bacteria, including Salmonella.
FAQ
What is the capacity of the UX series?
The capacity of the UX series ranges from 5,500 to 39,000 eggs per hour.
How effective are UX lamps at eliminating Salmonella?
UX lamps eliminate 100% of pathogenic Salmonella from the eggshell surface.
At what stage of production is the irradiation applied?
This is the first layer of protection, applied before the egg is broken.

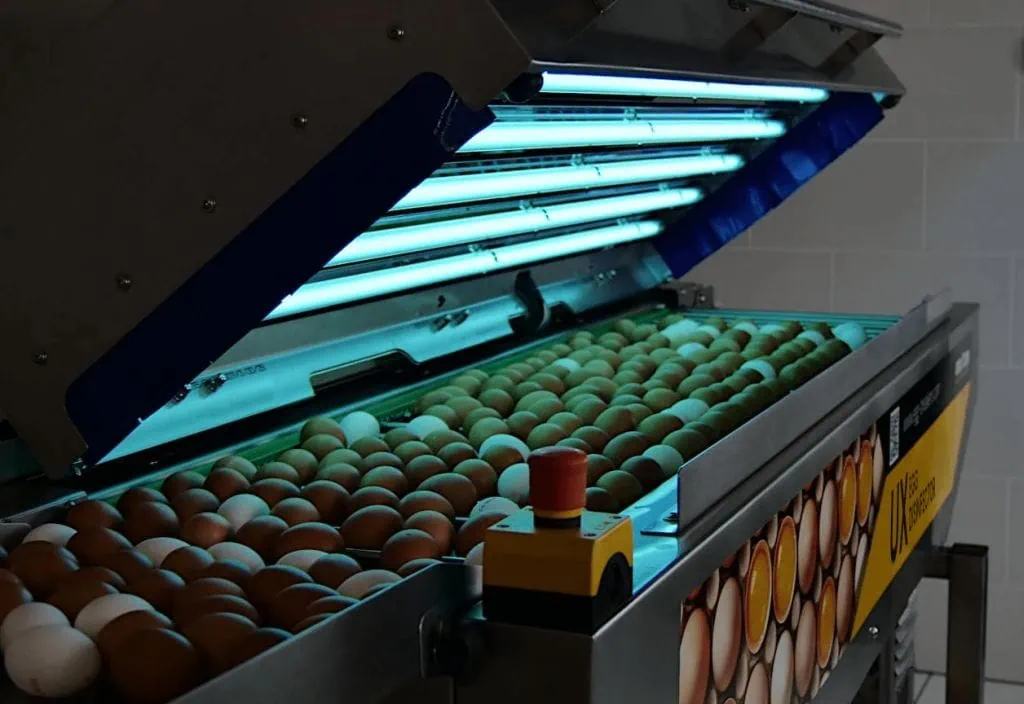

Where exactly are the lamps located in the machine?

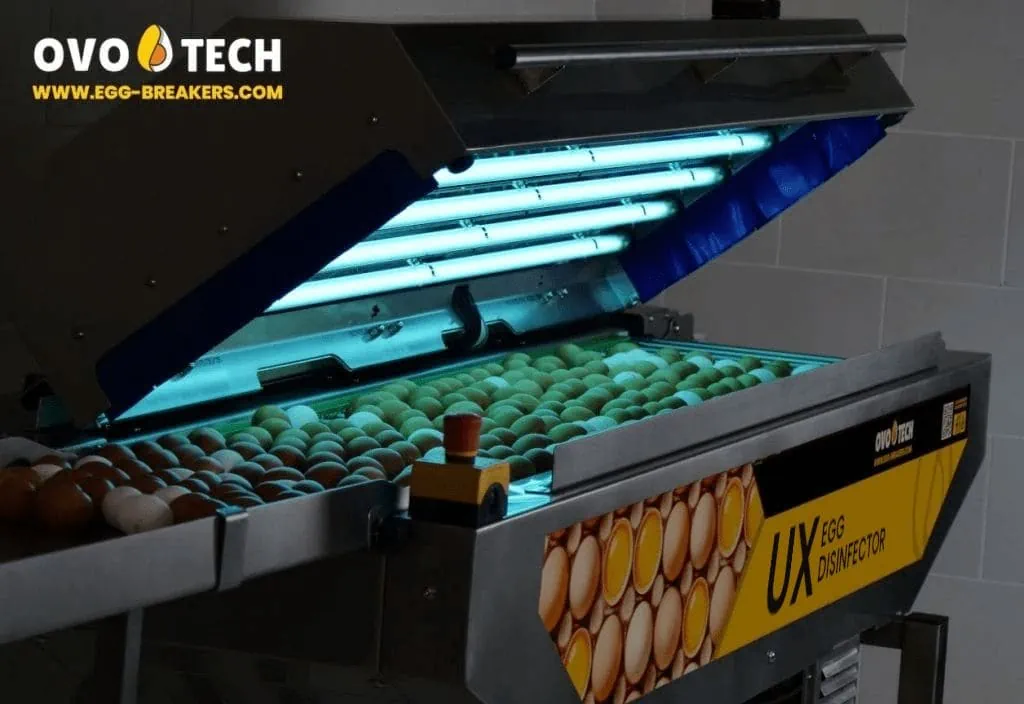

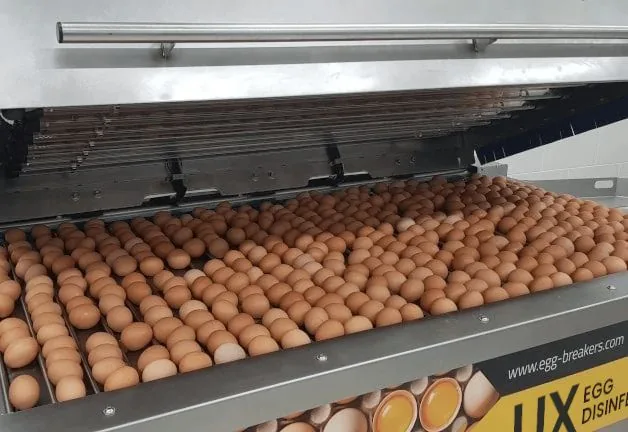

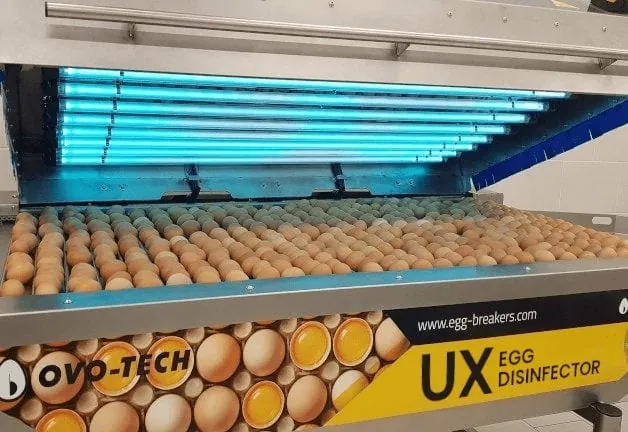

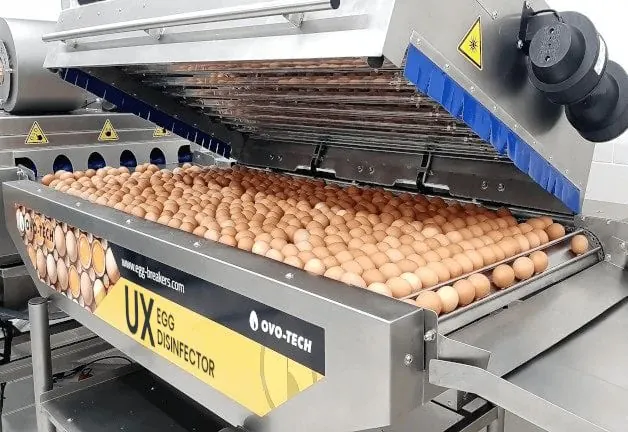

Powerful UV-C emitters are positioned above the roller conveyor on which the eggs rest.
Does the irradiation affect the nutritional value inside the egg?
UV-C radiation acts on the shell surface, ensuring safety without affecting the egg contents.
Do the UX irradiation units meet food safety standards?
Yes, they are a key element of microbial protection in modern food processing.
What material is the irradiation unit's housing made of?
High-quality AISI 304 stainless steel.

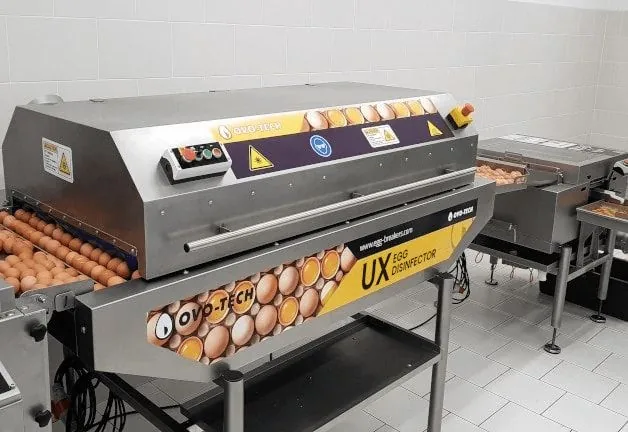

Can the UX unit be integrated into a production line?
Yes, the irradiation units are designed as part of integrated production lines.
What certifications do the disinfection units hold?
They hold NSF certification, confirming the equipment's safety for contact with food.
Is operating the UX difficult?

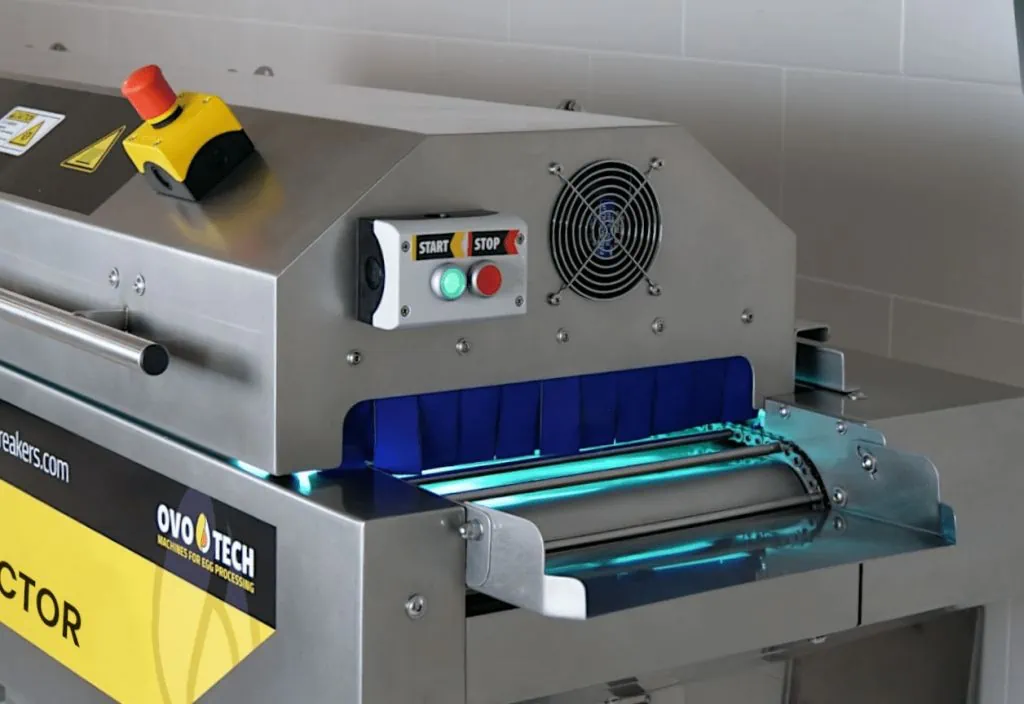

No, the process is automated and comes down to monitoring the lamps' operation.
Does UV-C irradiation replace egg washing?
These are two complementary processes — the washer removes physical dirt, while the UX ensures microbiological cleanliness.
Technical parameters
| Capcity | 26 000 eggs/hour |
| Drain | n/d |
| Electricity consumption | 2-2,5kWh/h |
| Height | 1235 / 49 |
| Lenght | 2200 / 87 |
| Material | INOX EN 1.4301 (AISI 304) |

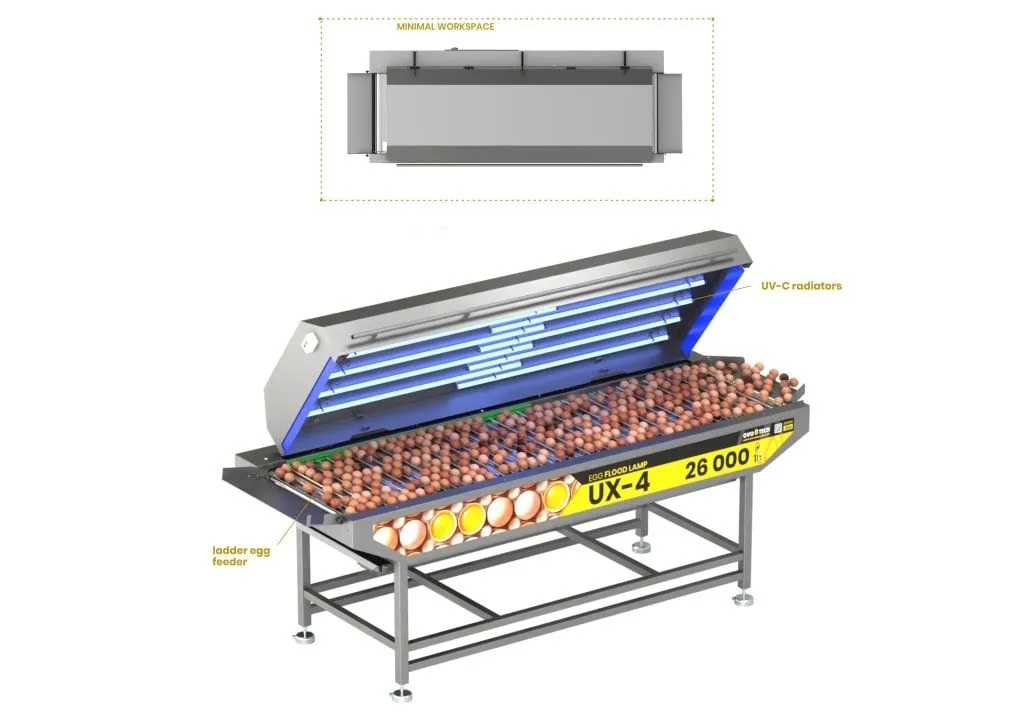

| Minimal workspace (mm) | 4800 x 2300 / 189 x 52 |
| Noise emission | 52 dB |
| Water supply | n/d |
| Width | 1550 / 61 |
