FS wedge wire filter

Innovative Wedge Wire Filtration

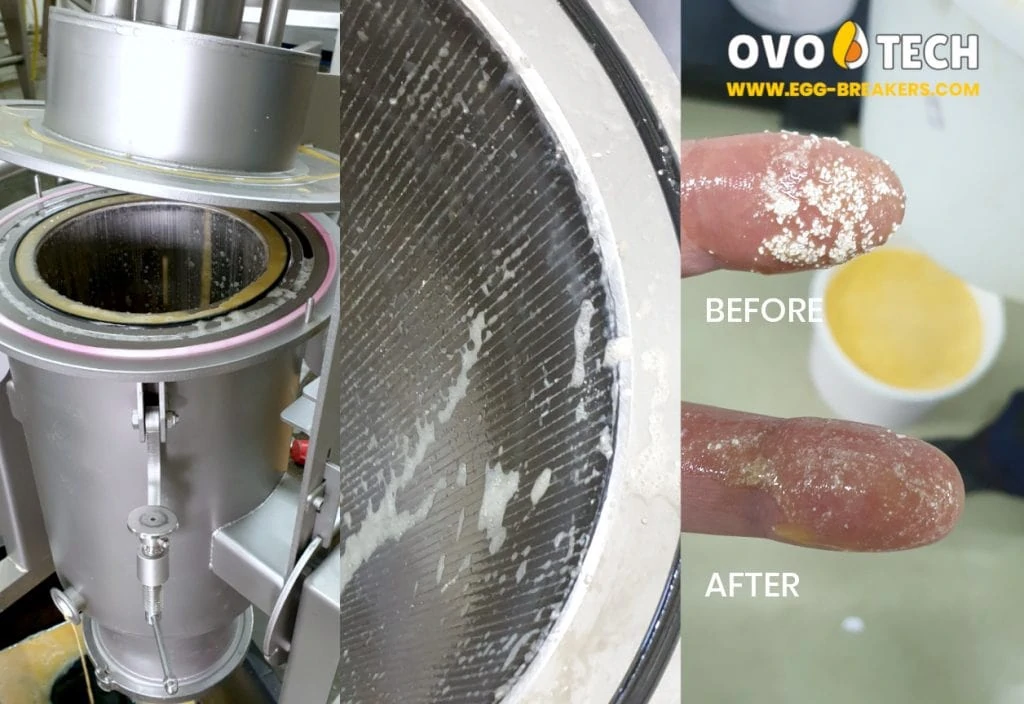

The advanced wedge wire design combined with a 0.2 mm slot diameter delivers a perfectly clean liquid egg by removing 99.9% of all contaminants.
High-Pressure Piston System
A specialized piston mechanism effectively squeezes the liquid through the filter, ensuring the highest possible level of filtration even at high volumes.
Unmatched Product Purity
By eliminating micro-contaminants, the FS filter guarantees a premium final product that meets the most stringent quality and safety standards.

Recommended for industries

Bakery Confectionary Pasta production

Product description

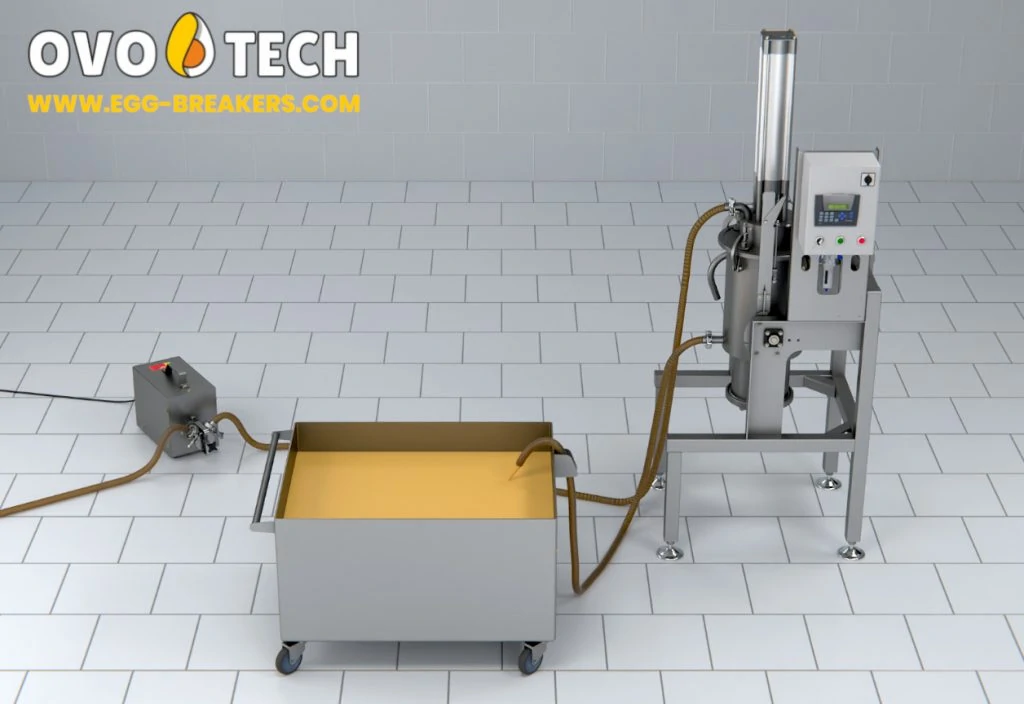

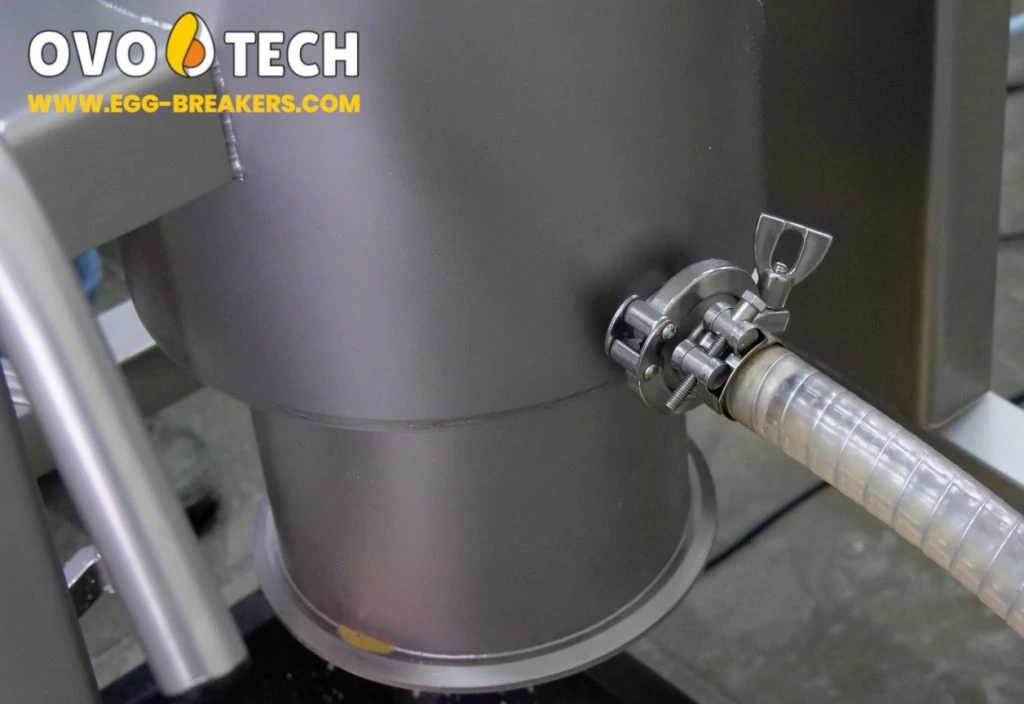

Thanks to the use of an innovative wedge wire filter, the FS filter allows for obtaining of a perfectly clean egg liquid. The egg liquid is first transported into the filter using a pump. Next, a piston squeezes the liquid egg through slots with a diameter of 0.2 mm. This process allows to remove 99.9% of all contaminants, which results in obtaining the highest possible level of filtration.

Technical parameters

Capcity	5000 L/hour, max pressure 3 bar 1321 gallons/hour, max pressure 44 psi
Electricity consumption	0,1kWh/h
Height	1764 / 70
Lenght	778 / 31
Material	INOX EN 1.4301 (AISI 304)
Minimal workspace (mm)	1750 x 1850 / 69 x 73
Noise emission	68 dB
Spare parts	* key "24"
Weight (kg/lbs)	120 / 265
Width	823 / 32
