Centrifuges

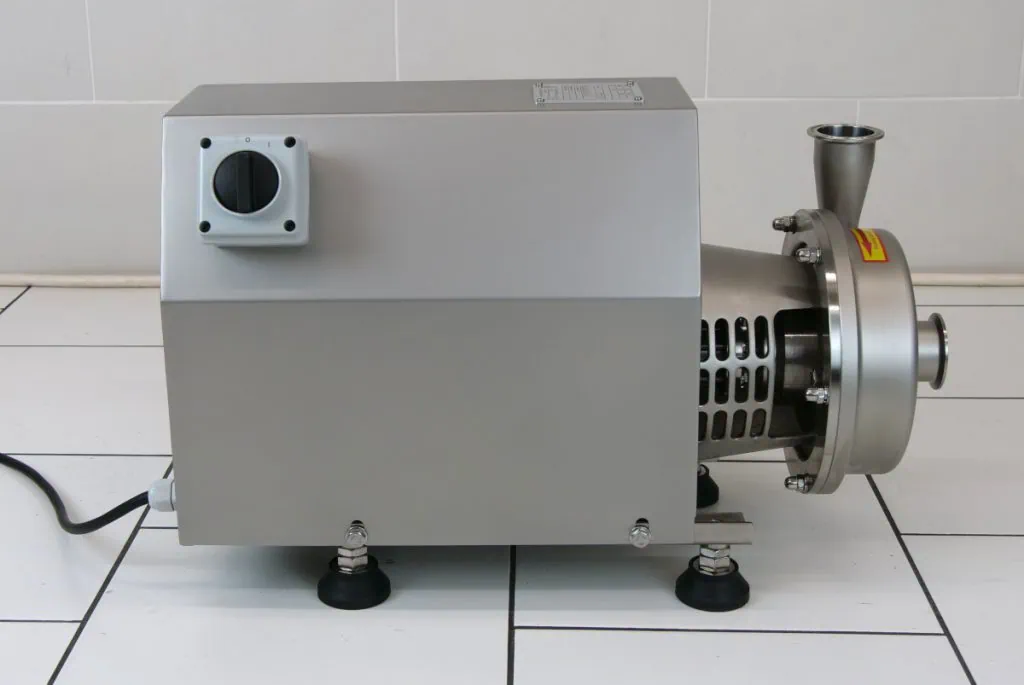

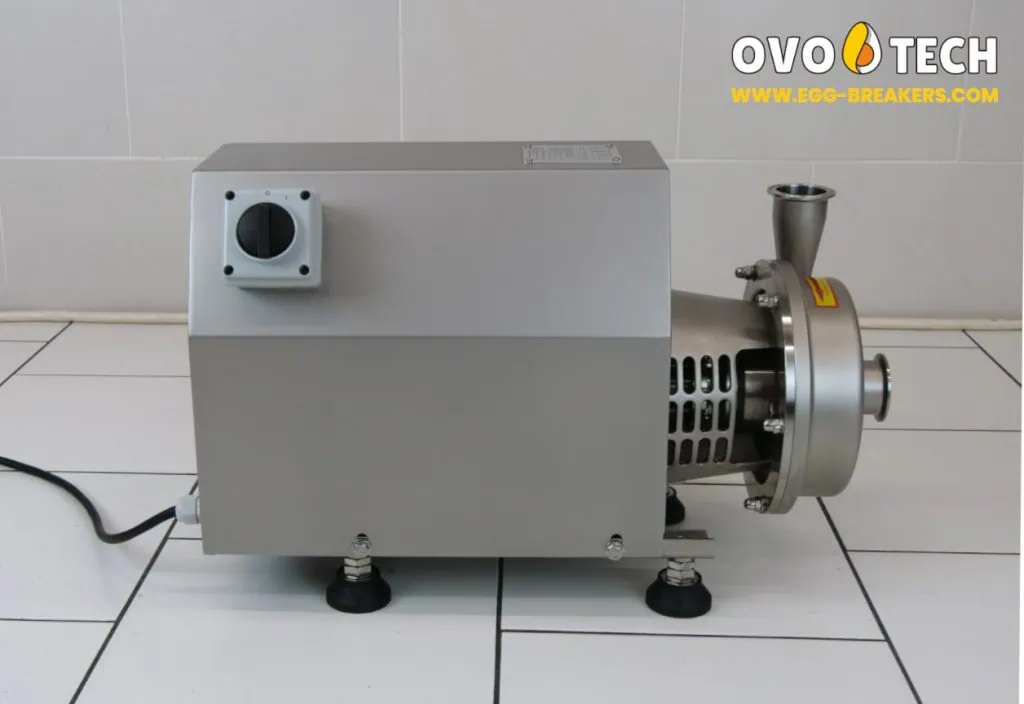

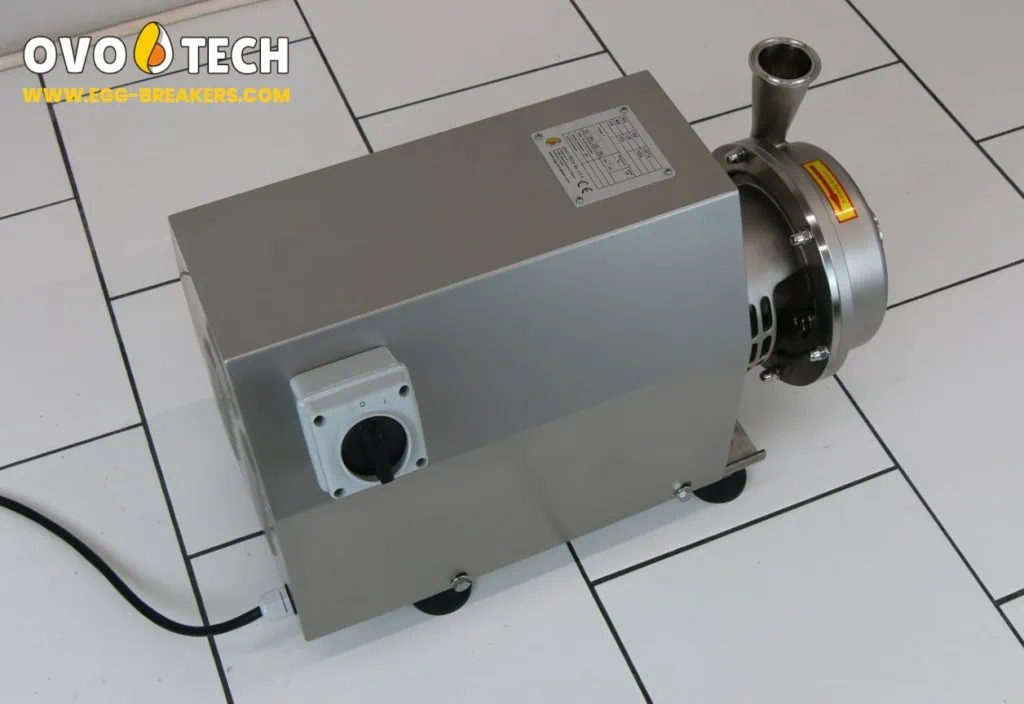

PMC-5
-
Versatile Connection Standards

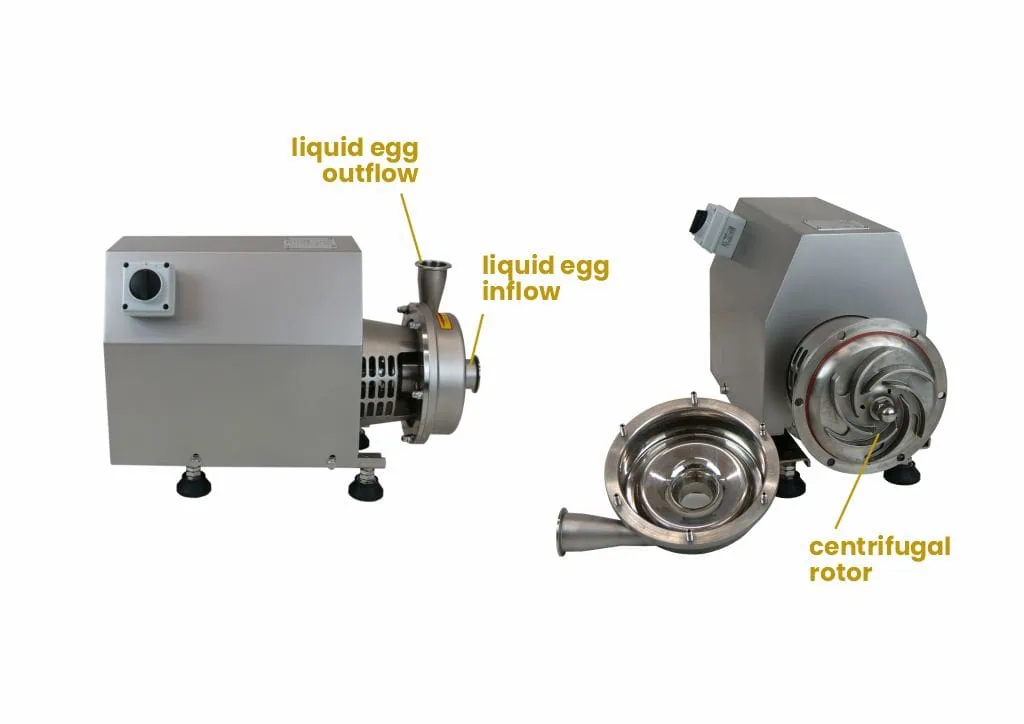

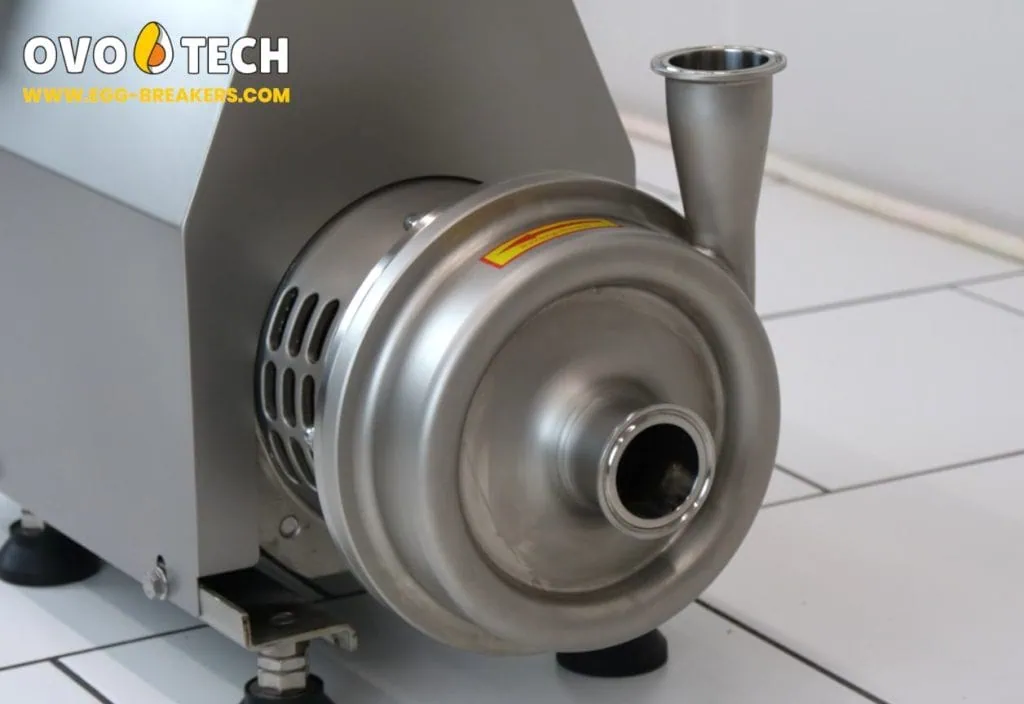

Equipped with DN50/DN35 inlets and outlets (compatible with 64 mm/50 mm triclamp fittings), ensuring seamless integration into standard industrial piping and quick-release systems. -
Powerful Vertical Lift
Features a robust lifting height of 24 meters, providing the necessary pressure to transport liquid egg across multi-level facilities or through complex filtration circuits. -
Heavy-Duty Throughput
The high-head capacity and standardized industrial ports are engineered to maintain a consistent flow rate, even when dealing with the high viscosity of fresh egg liquid.

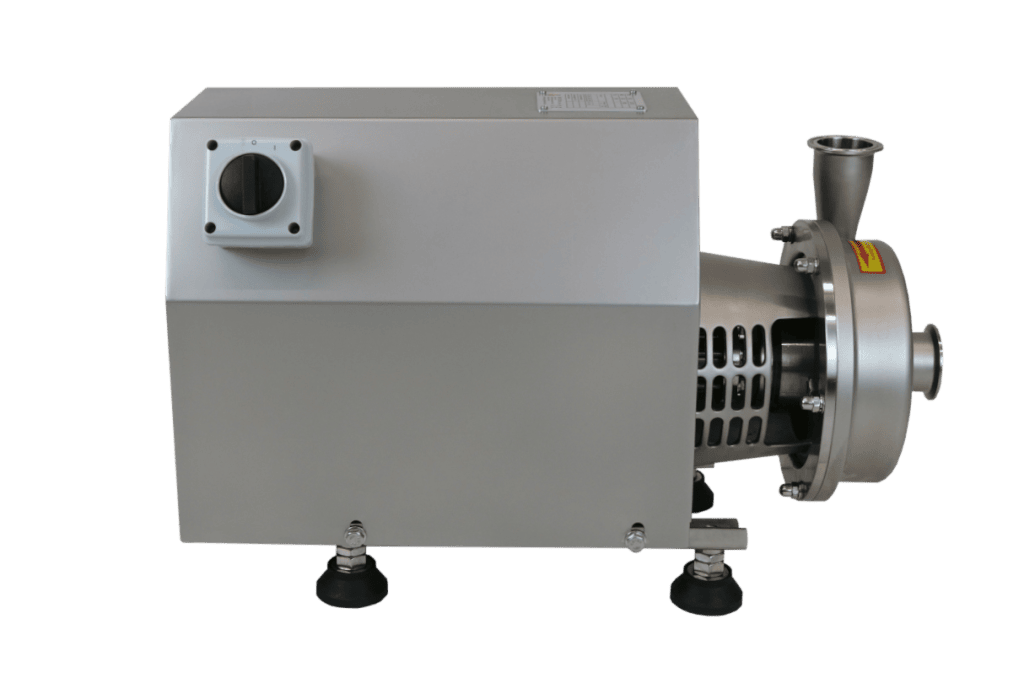

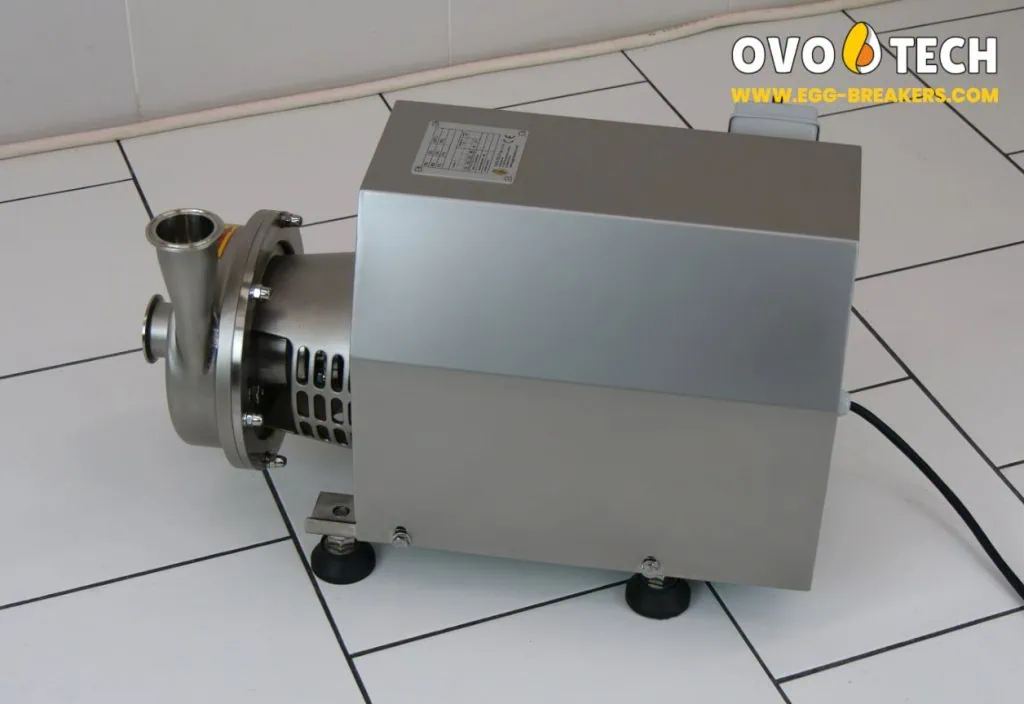

Product description
INTEL/OUTLET DN50/DN35 (64 mm/ 50 mm triclamp) *lifting height of the water 24m
Technical parameters
| Capcity | 5000 L/hour 1320 gallons/hour |
| Electricity consumption | 1-1,5kWh/h |
| Height | 350 / 14 |
| Lenght | 640 / 26 |
| Material | INOX EN 1.4301 (AISI 304) /INOX EN 1.4401 (AISI 316) |
| Minimal workspace (mm) | 500 x 1000 / 20 x 39 |
| Noise emission | 68 dB |
| Spare parts | INTEL/OUTLET DN50 (triclamp |
| Weight (kg/lbs) | 35 / 78 |
| Width | 305 / 12 |
