Egg washers

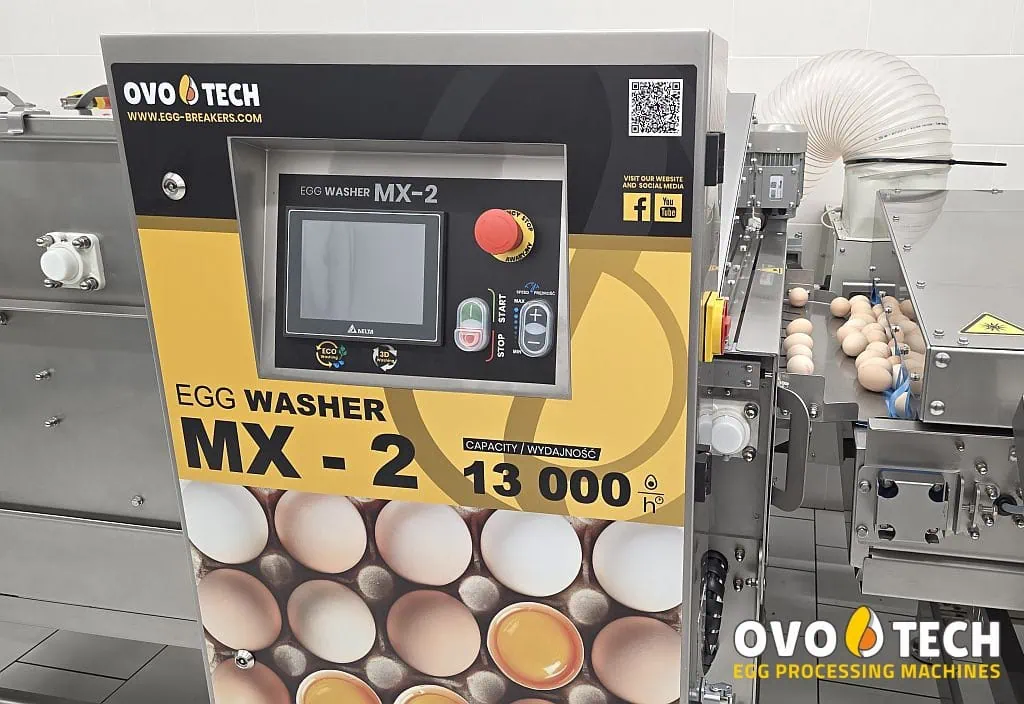

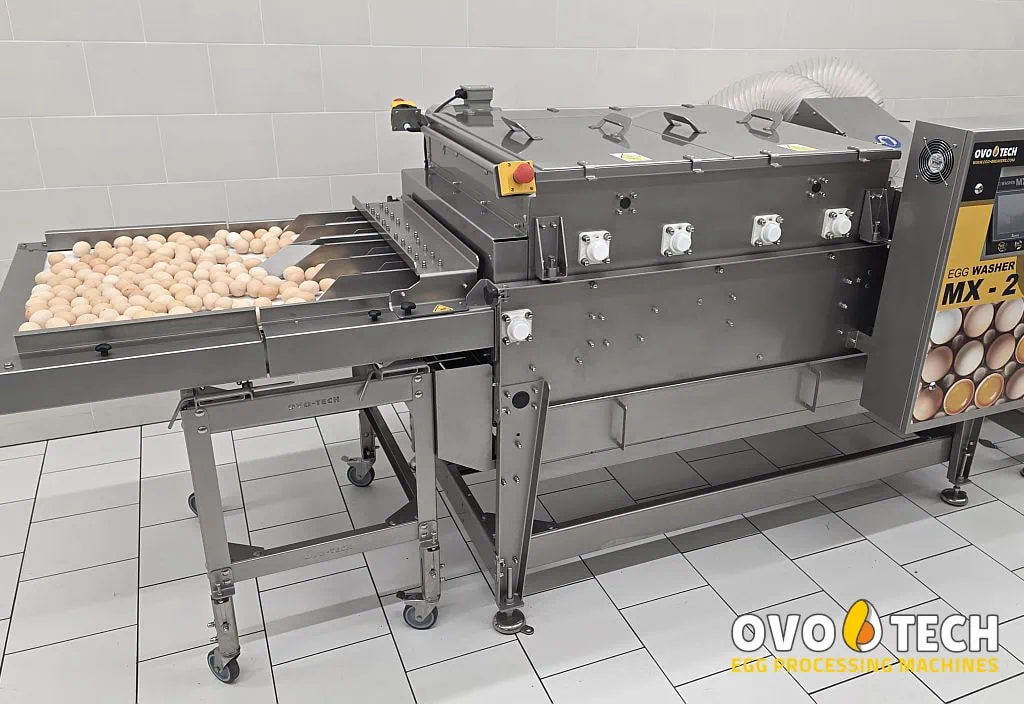

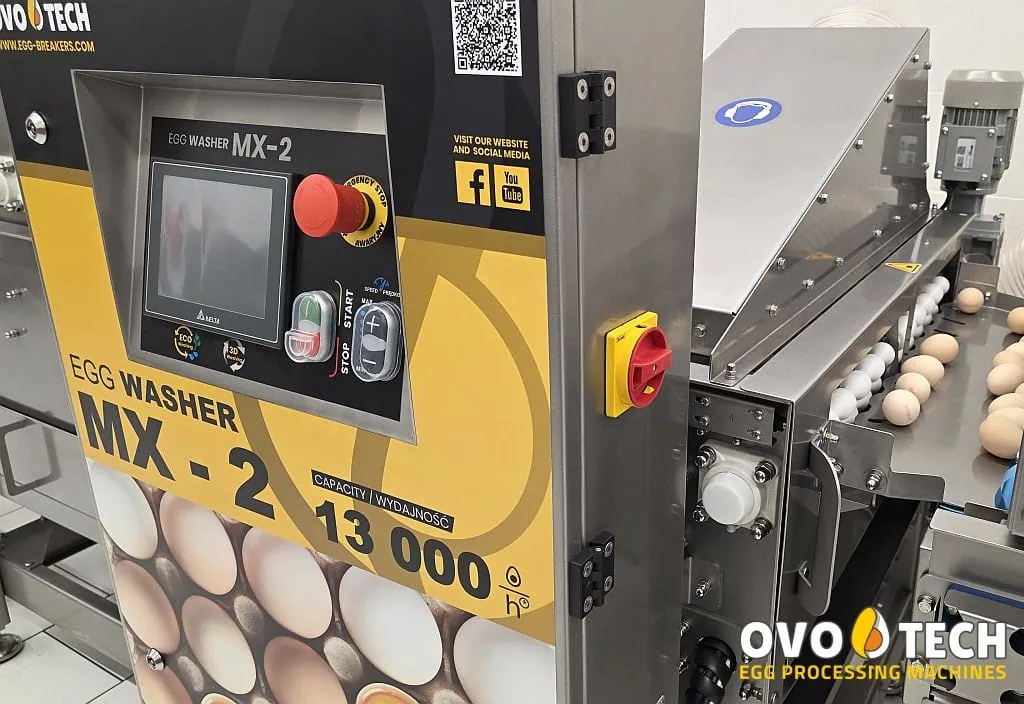

MX-2 tunnel egg washer
- Replaces 28 persons
-
Precision 3D Cleaning Technology
Rotating brushes and profiled rollers spin each egg to ensure the entire surface is thoroughly cleaned from every angle. -
Advanced Drying Section
Integrated high-velocity warm air streams instantly dry the eggs after washing, preparing them for immediate processing or packaging. -
Economical Closed-Loop System
The machine utilizes a closed water circuit to maximize efficiency, significantly reducing water consumption and operational expenses.
Product description

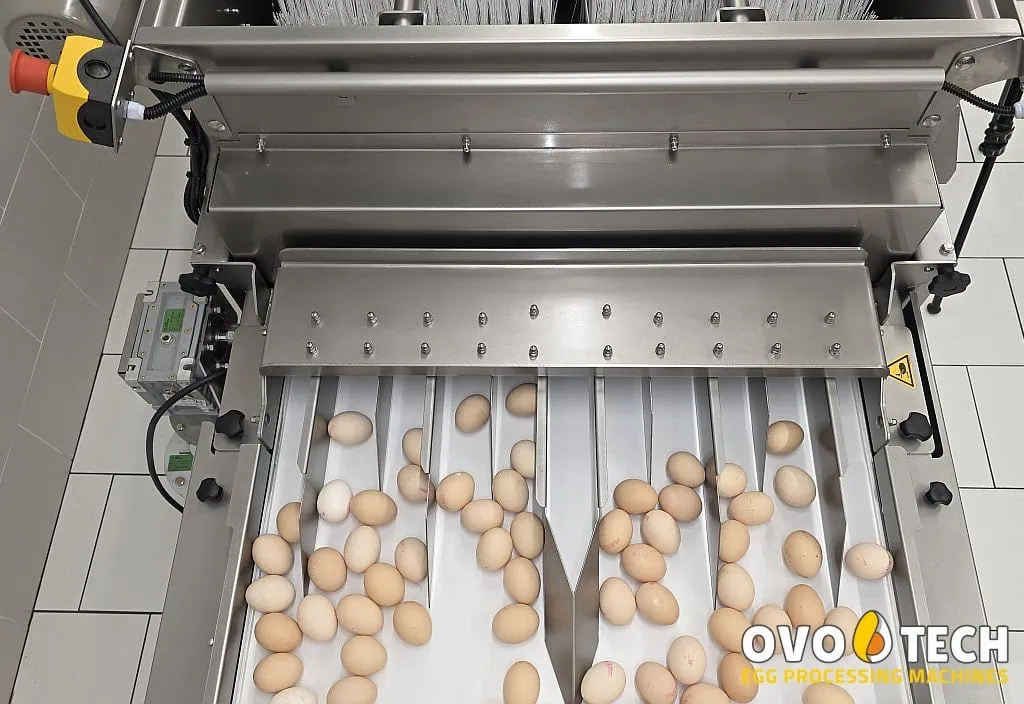

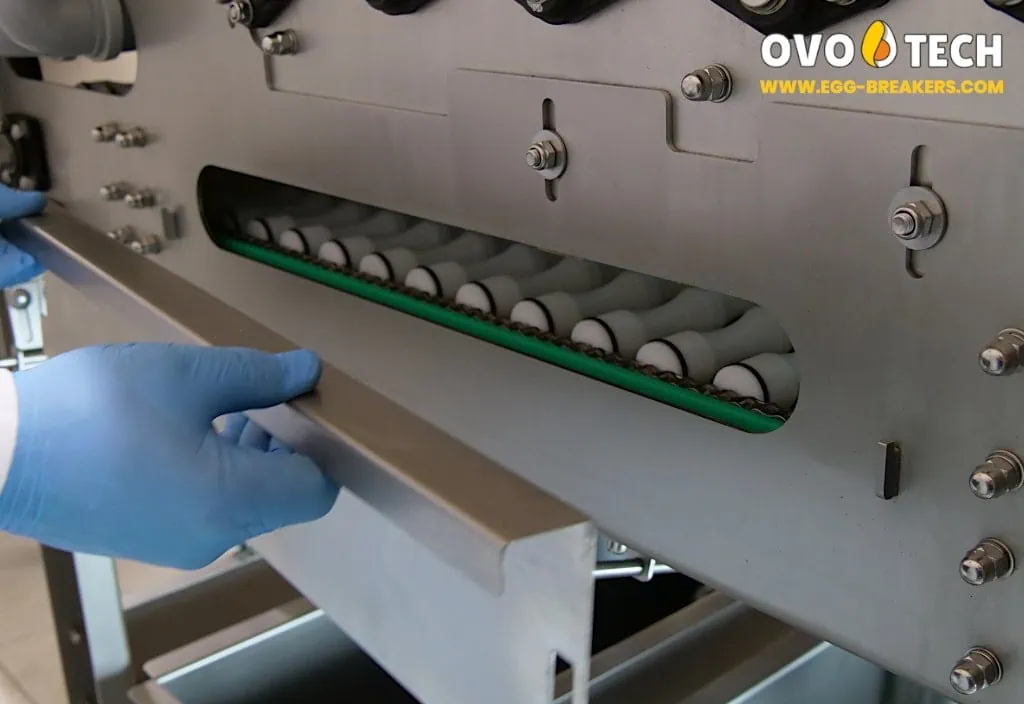

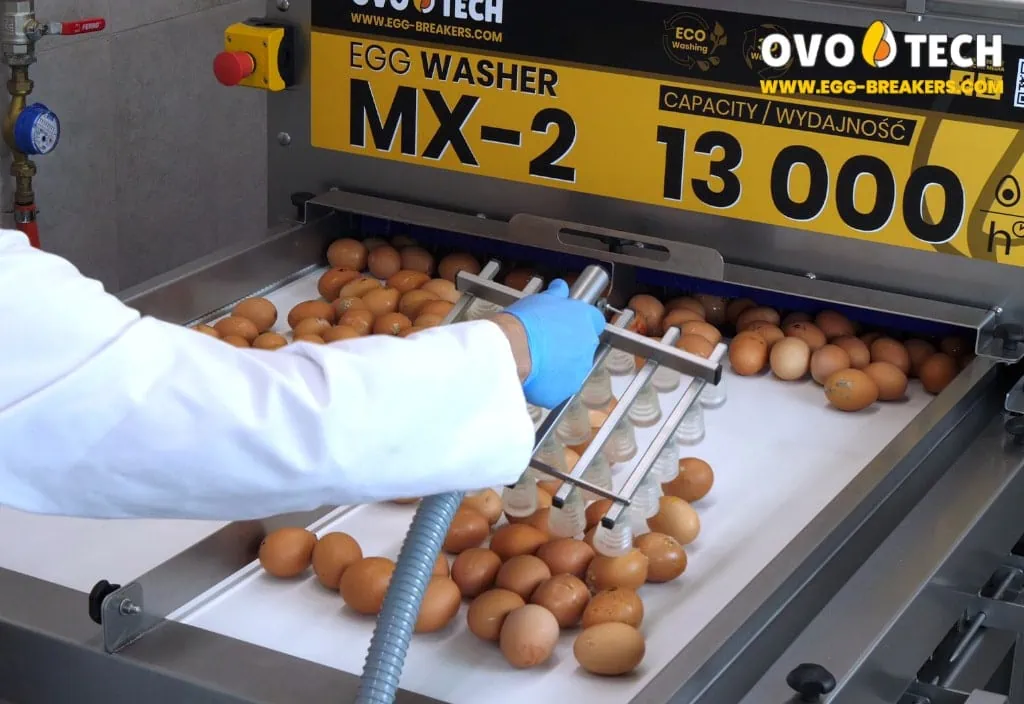

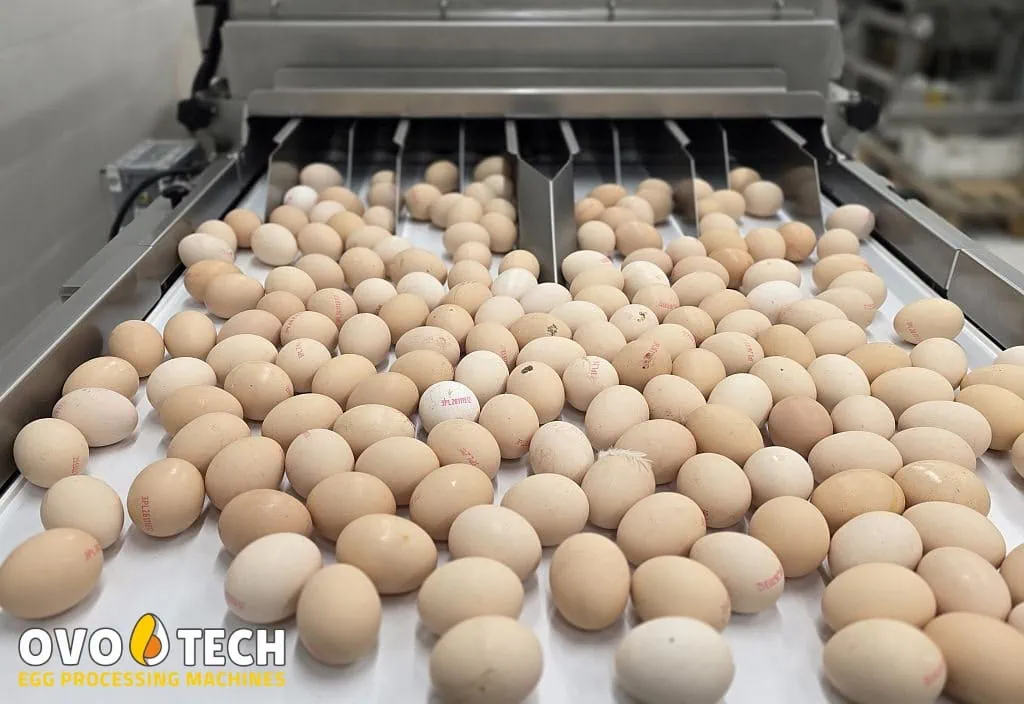

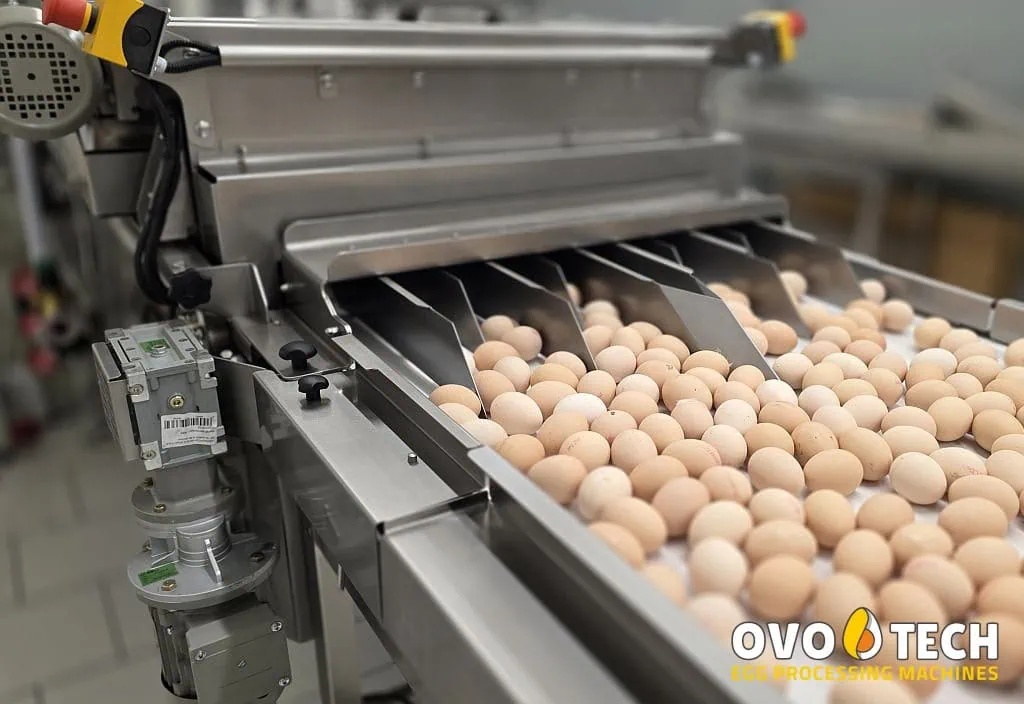

The MX-2 washes the eggs in a 3D fashion thanks to the use of specially designed rotating brushes which clean all of the eggs’ surfaces. This allows for an exceptional level of cleanliness. First, the eggs are fed into the machine with the use of an integrated belt feeder. There, thanks to the use of specially profiled rollers, the eggs are rotated along their axis, while specially designed brushes wash the eggs at every angle, which results in a 3D washing effect. After washing, the eggs are transported into a drying section, where they are dried by a stream of warm air. The washer operates in a closed water circuit, which allows for its optimal use and reduces costs.
FAQ
What is the capacity of the MX washer series?
The capacity of the MX series ranges from 3,000 to 39,000 eggs per hour.
How many workers does the MX egg washer series replace?
The MX series replaces the work of 17 to as many as 85 people.
Can the MX washer damage eggs during the process?
No, the system uses gentle brushes that conform to the shape of the egg, eliminating the risk of breakage.
How much water does the MX-1 washer use?
Thanks to its closed-loop operation, the unit consumes only 90 liters of water per 8 hours of operation.
Can cracked eggs be cleaned in the washer?
No, washing cracked eggs is prohibited for hygienic and technical reasons.
Are washed eggs suitable for sale as a fresh product?
Yes, washed eggs are fully marketable and safe for sale or further processing.
What are the energy requirements for the washers?
A standard electrical connection of 230V or 400V is required, depending on the model specification.
Does the washer require access to a drainage system?
Yes, floor drains are required for free drainage of dirty water.
Is the washing process fully automated?
Yes, the eggs move through a brush system, minimizing worker involvement.
How does the MX washer affect hygiene in the facility?
It removes external contaminants from the shell, which is critical before the breaking process.
Is the washer's steel resistant to detergents?
The AISI 304 steel used is resistant to standard cleaning agents used in the food industry.
Where can I find the cleaning instructions for the unit?
There is a QR code on the casing that links to instructional videos.
Technical parameters
| Capcity | 13 000 eggs/hour |
| Drain | x |
| Electricity consumption | 32-35kWh/h |
| Height | 1571 / 62 |
| Info | Filling the heating tank + washing tank 172l, operating consumption minimum 131l per 4-hour cycle, rinsing with mains water |
| Lenght | 3207/ 127 |
| Material | INOX EN 1.4301 (AISI 304) |
| Minimal workspace (mm) | 4300 x 2900 / 170x 114 |
| Noise emission | 82dB/Fan 89 dB |
| Replaces | 28 persons |
| Water supply | water from client's installation |
| Weight (kg/lbs) | 790 / 1742 |
| Width | 1777/ 70 |
Comparison
Compare products
MX-2 tunnel egg washer
Summary
-
Precision 3D Cleaning Technology
Rotating brushes and profiled rollers spin each egg to ensure the entire surface is thoroughly cleaned from every angle. -
Advanced Drying Section
Integrated high-velocity warm air streams instantly dry the eggs after washing, preparing them for immediate processing or packaging. -
Economical Closed-Loop System
The machine utilizes a closed water circuit to maximize efficiency, significantly reducing water consumption and operational expenses.
-
Comprehensive 3D Washing
Rotating brushes and profiled rollers scrub eggs from every angle, ensuring total surface cleanliness through a unique 3D cleaning effect. -
Integrated Drying System
After washing, eggs are immediately dried by a high-velocity warm air stream, making them ready for instant further processing. -
Cost-Efficient Closed Water Circuit
The machine operates on a closed-loop system that optimizes water usage and significantly lowers overall operational costs.
-
Precision 3D Cleaning
Rotating brushes and profiled rollers scrub the entire egg surface from every angle, ensuring an exceptional level of hygiene. -
Gravity Feeding and Rapid Drying
The integrated gravity feeder ensures smooth egg transport, while a high-velocity warm air stream prepares eggs for immediate further processing. -
Cost-Saving Closed Water Circuit
A closed-loop water system optimizes consumption, significantly reducing operational expenses and environmental impact.
-
Precision 3D Cleaning Technology
Specially profiled rollers rotate eggs along their axis, allowing rotating brushes to scrub every surface for an exceptional, multi-dimensional clean. -
Automated Feeding and Rapid Drying
The integrated belt feeder ensures a smooth workflow, while a high-velocity warm air stream instantly dries eggs for immediate downstream processing. -
Cost-Efficient Closed Water Circuit
A smart closed-loop system maximizes water reuse, significantly lowering utility costs and enhancing the machine’s overall operational efficiency.
Capcity
13 000 eggs/hour
3000-6500 eggs/hour
26 000 eggs/hour
39 000 eggs/hour
Drain
x
x
x
—
Electricity consumption
32-35kWh/h
13-14kWh/h
35-40kWh/h
45-50kWh/h
Height
1571 / 62
1592 / 63
1464 / 60
1605 / 63
Info
Filling the heating tank + washing tank 172l, operating consumption minimum 131l per 4-hour cycle, rinsing with mains water
Washing tank capacity: 70L - operational consumption approx. 14L per cycle, which gives a demand of approx. 84L per 4 hours. It does not have a rinsing tank, the outflow from the rinsing section is d
Filling the heating tank + washing tank 172l, operating consumption minimum 131l per 4-hour cycle, rinsing with mains water
—
Lenght
3207/ 127
1883 / 75
4145 / 211
5280 / 207
Material
INOX EN 1.4301 (AISI 304)
INOX EN 1.4301 (AISI 304)
INOX EN 1.4301 (AISI 304)
INOX EN 1.4301 (AISI 304)
Minimal workspace (mm)
4300 x 2900 / 170x 114
2880 x 1880 / 114 x 75
5600 x 2300 / 205 x 103
7000 x 3500 / 290 x 138
Noise emission
82dB/Fan 89 dB
82dB/Fan 89 dB
82dB/Fan 89 dB
82dB/Fan 89 dB
Replaces
28 persons
17 persons
56 persons
85 persons
Water supply
water from client's installation
water from client's installation
water from client's installation
water from client's installation
Weight (kg/lbs)
790 / 1742
270 / 595
1120 / 2470
1300 / 2866
Width
1777/ 70
878 / 35
2068/ 82
2000 / 79
