Egg breakers
RX-1 egg breaker
- Replaces 14 persons
-
Precision Robotic Breaking
The proprietary rotary knife mechanism mimics manual hand-breaking to ensure peak microbiological purity and record-breaking process efficiency. -
Full System Integration
Seamlessly connects with washers and UV disinfectors, featuring an integrated separator and shell crusher that reduces waste volume by 95%. -
Rapid CIP & AISI 304 Durability
A built-in Clean-In-Place system minimizes maintenance downtime, while the high-grade stainless steel build guarantees long-term industrial reliability.
Product description

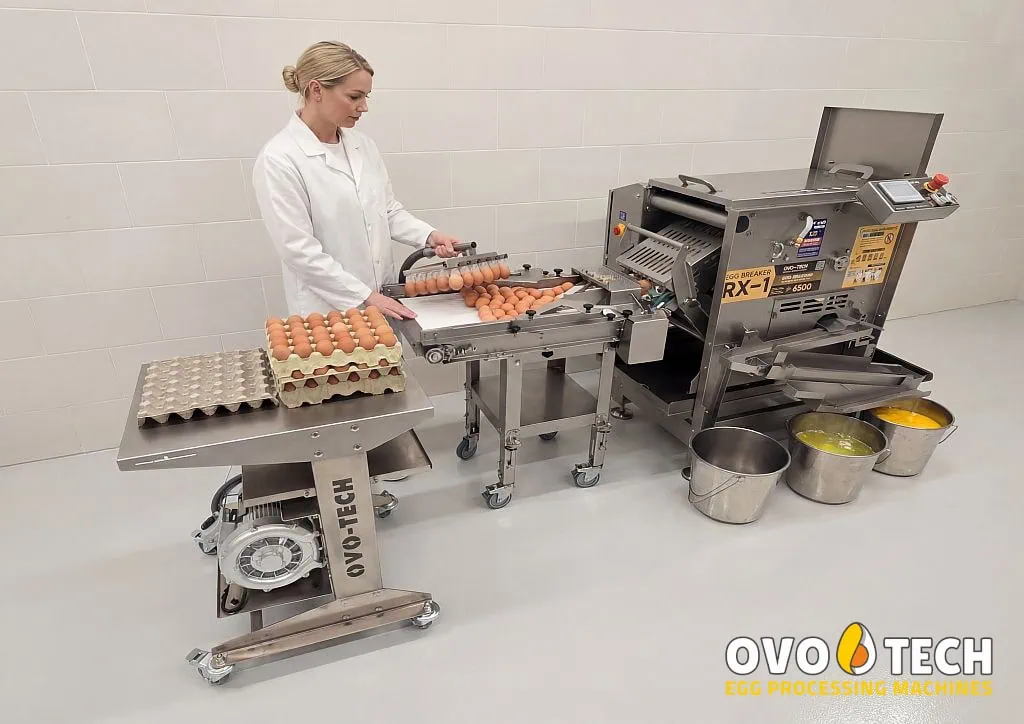

The RX-1 egg breaker is equipped with a belt conveyor and a gravity-roller feeder to smoothly transport eggs into the breaking section. The high productivity of the machine is achieved through the use of innovative rotary breaking mechanisms.
The machine breaks the eggshells using specially shaped knives, mimicking the work of human hands. This highly hygienic method of breaking eggs is an innovation by OVO-TECH. For a fully automated processing line, the machine can be seamlessly integrated with the Mx-1 Egg Washer and the Ux-1 UV Egg Sanitizer.
Processing and Quality Control.

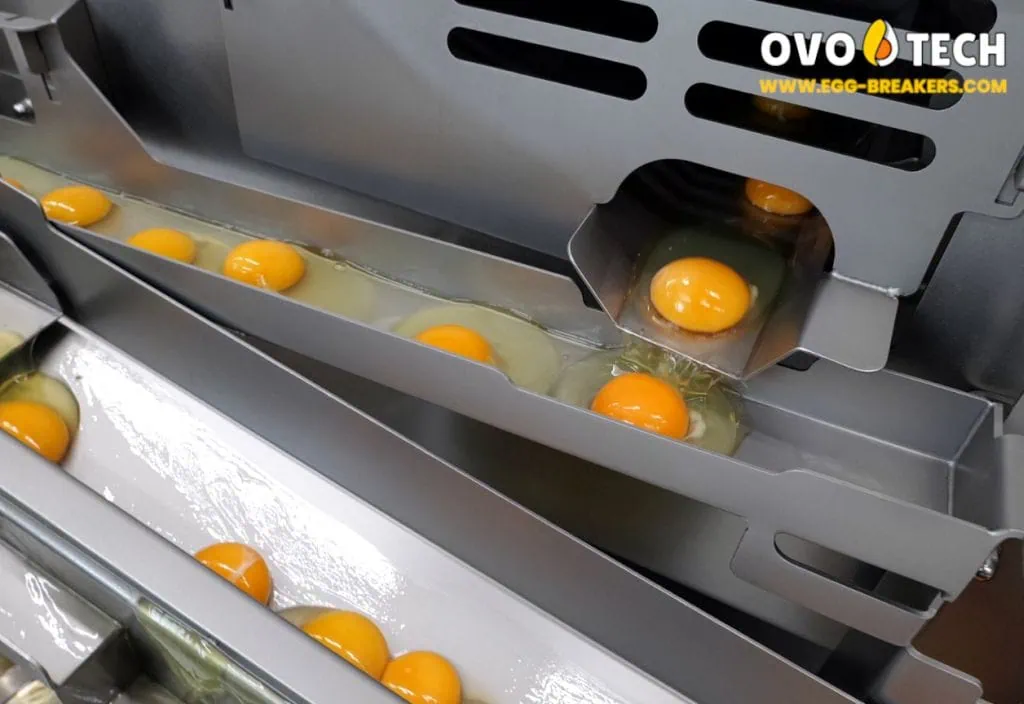

The broken eggs then flow through a specially designed compact controller for additional quality control.

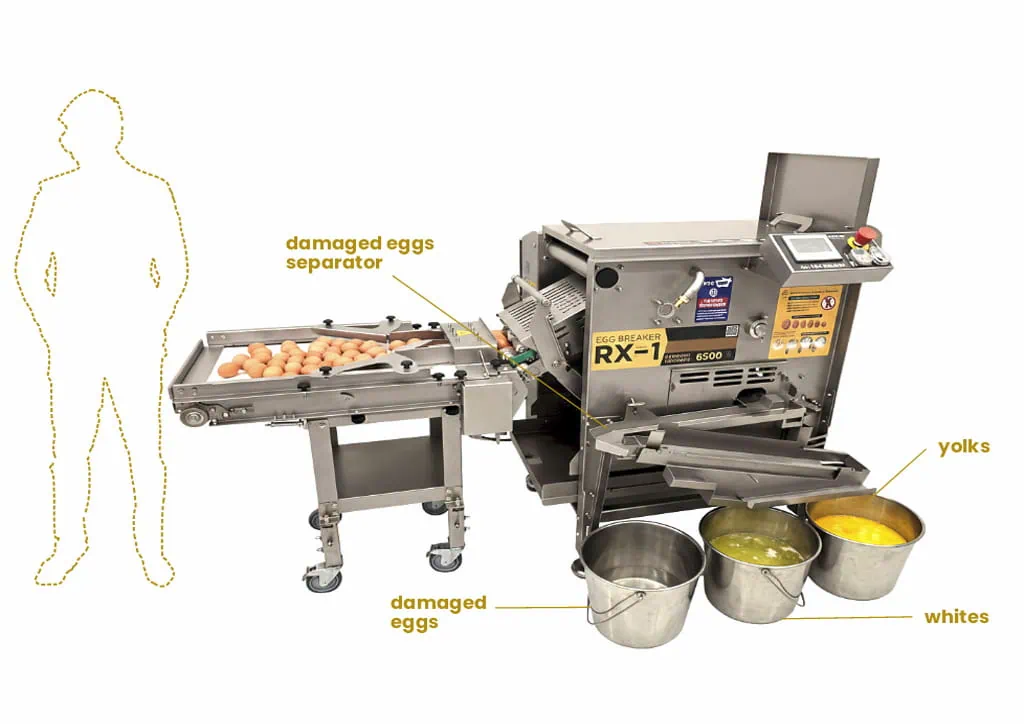

After flowing through the controller, the eggs go to the separator, where the yolks are separated from the whites.

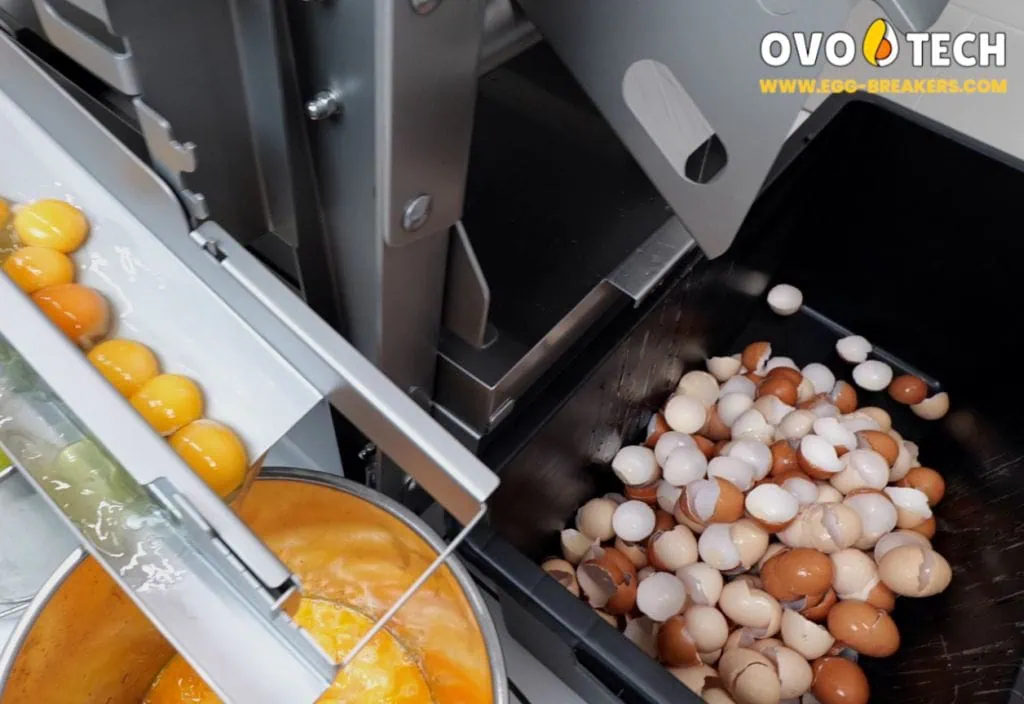

The volume of shells from the broken eggs is reduced using a stand-alone UZS universal shell crusher. This ensures a 95% reduction in the volume of shells.
Hygiene and Durability:
After operation, the machine can be washed using its integrated CIP (Clean-In-Place) system. The entire unit is made of premium INOX EN 1.4301 (AISI 304) steel.
FAQ
What is the capacity of the RX series egg breakers?
The capacity of the RX series ranges from 3,000 to 39,000 eggs per hour.
Does the RX series actually replace manual labor?
Yes, the RX series capacity allows replacing the work of 5 to 85 people while maintaining the highest hygiene standards.
Do I need to sort eggs by size before breaking?
No, RX machines do not require manual calibration and handle eggs in sizes from S to XL.
What is the breaking efficiency of the RX series machines?
The breaking efficiency is 99% thanks to a blade system that mimics the motion of human hands.
Is there a risk of shell fragments getting into the egg mass?
The risk is minimized to zero thanks to an innovative precision breaking mechanism.
What happens when the yolk breaks during the process?
RX machines feature a special controller that allows removal of a broken yolk, protecting the purity of the egg white.
What type of steel are the breaking blades made of?
All components in contact with the egg are made of AISI 304 stainless steel (EN 1.4301).
Can the machine be cleaned using industrial washers?
Yes, the steel construction is resistant to high temperatures and steam sterilization. The machine is also equipped with a CIP self-cleaning system. It takes only 15 minutes to clean the machine using detergent and a water connection.
What technology does the customer get when choosing the RX series?
The customer gets a maintenance-free, hygienic technology that provides "peace of mind" when separating yolk from egg white.
Is the RX series suitable for smaller facilities?
Yes, the RX-0 with a capacity of up to 3,000 eggs/hour replaces the work of 5 people, making it ideal for smaller bakeries and confectioneries.
Technical parameters
| Capcity | 6500 eggs/hour |
| Drain | x |
| Electricity consumption | 0,5kWh/h |
| Height | 1430 / 56 |
| Lenght | 1971 / 78 |
| Material | INOX EN 1.4301 (AISI 304) |
| Minimal workspace (mm) | 3175 x 2205 / 125 x 87 |
| Noise emission | 69 dB |
| Replaces | 14 persons |
| Water supply | water from client's installation |
| Weight (kg/lbs) | 280 / 617 |
| Width | 1004 / 40 |
