Egg breakers

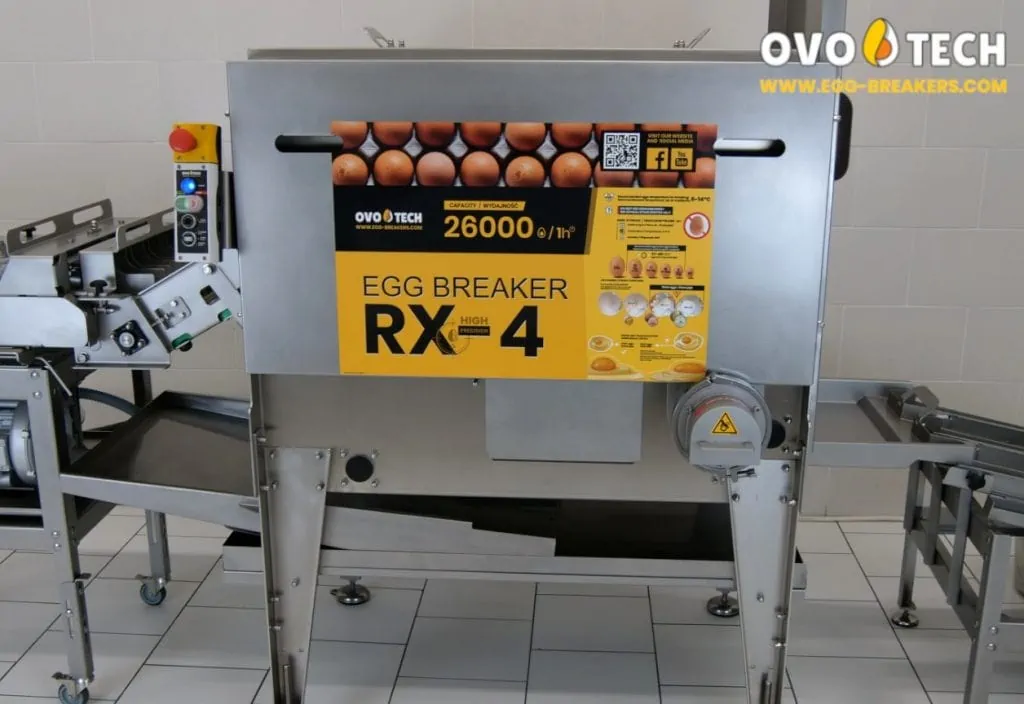

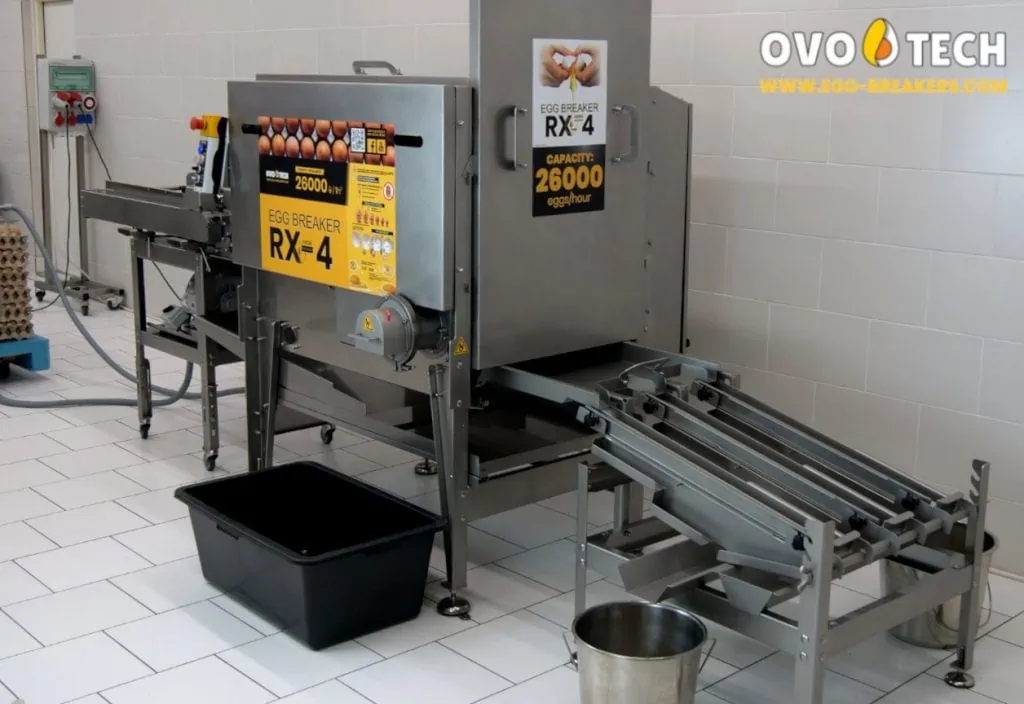

RX-4 egg breaker
- Replaces 56 persons
-
Maximum Hygiene and Efficiency
OVO-TECH’s proprietary rotary mechanism mimics human precision to deliver the highest sanitary standards and peak breaking capacity. -
Dual Separation and Quality Control
The integrated control meander and dual parallel separators guarantee flawless yolk-white separation and uncompromising product purity. -
Waste Reduction and Rapid Cleaning
A built-in CIP system and shell crusher minimize maintenance downtime while reducing waste volume by 95% for optimal efficiency.
Product description

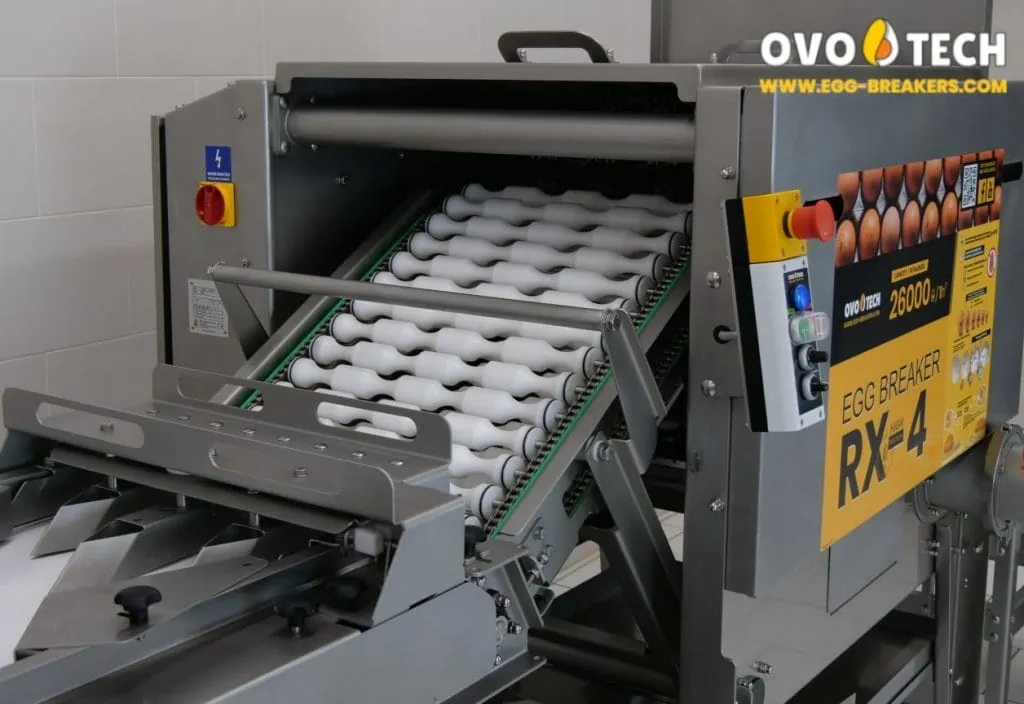

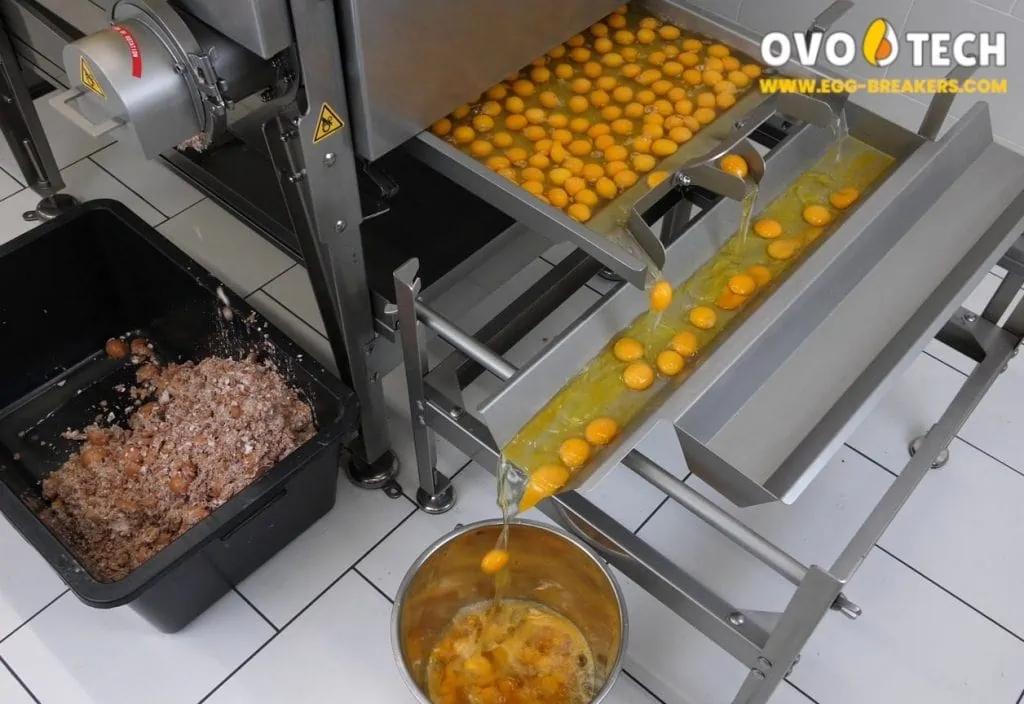

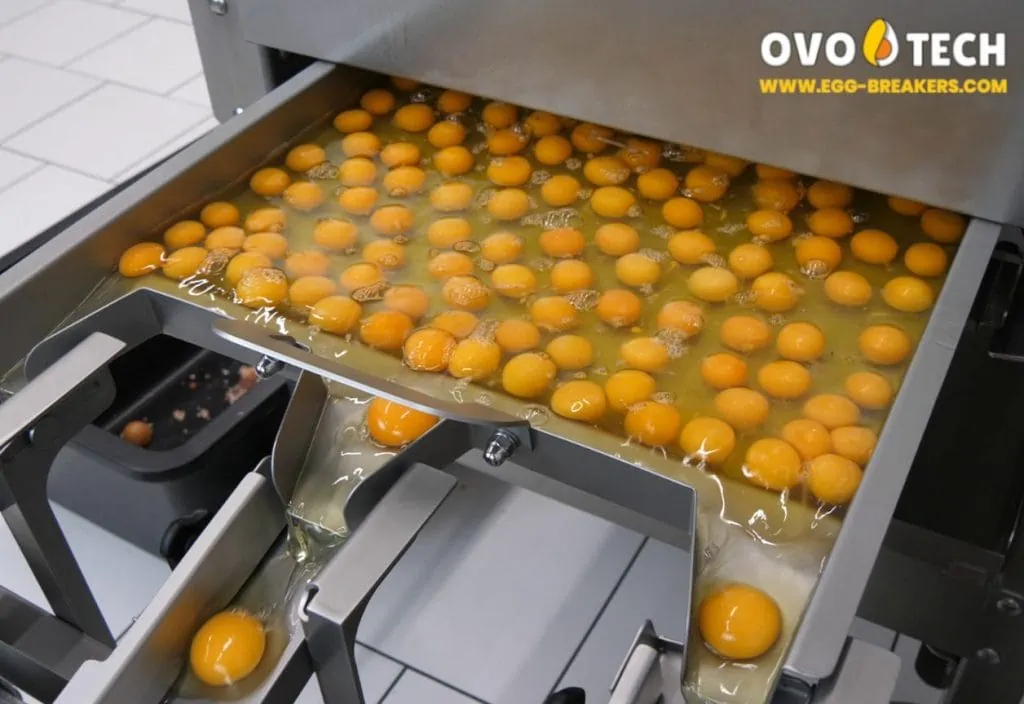

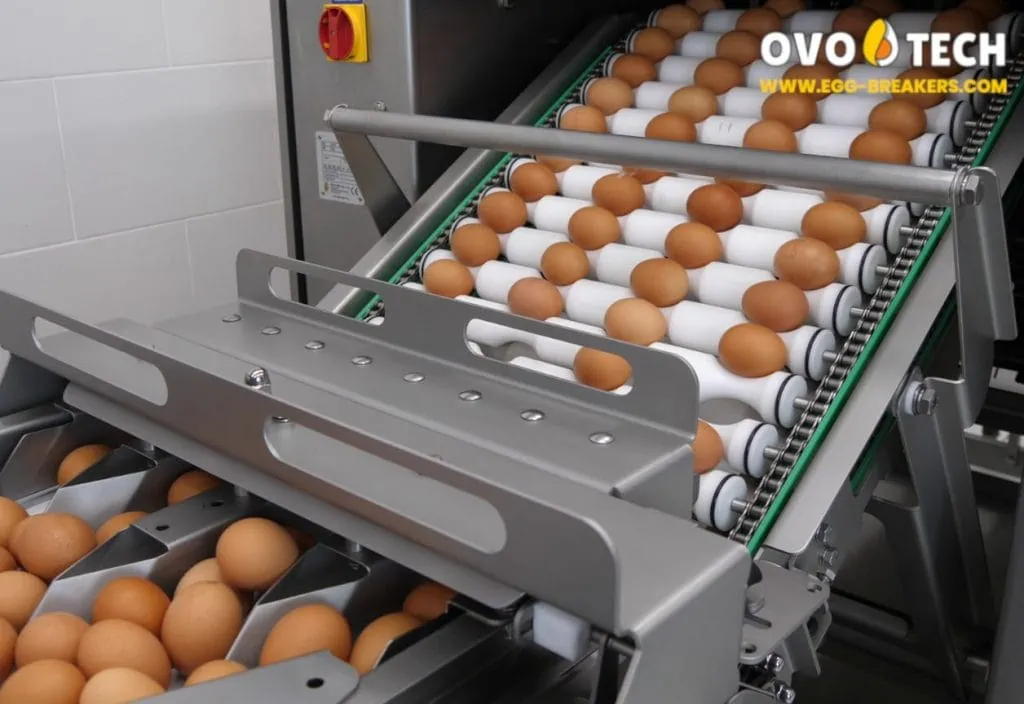

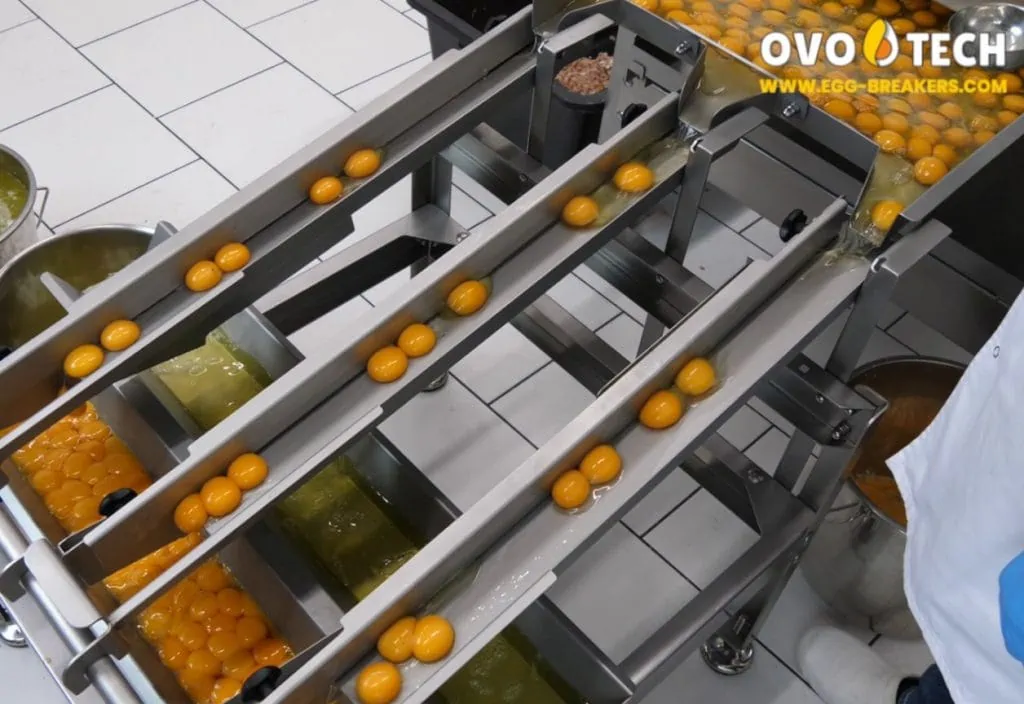

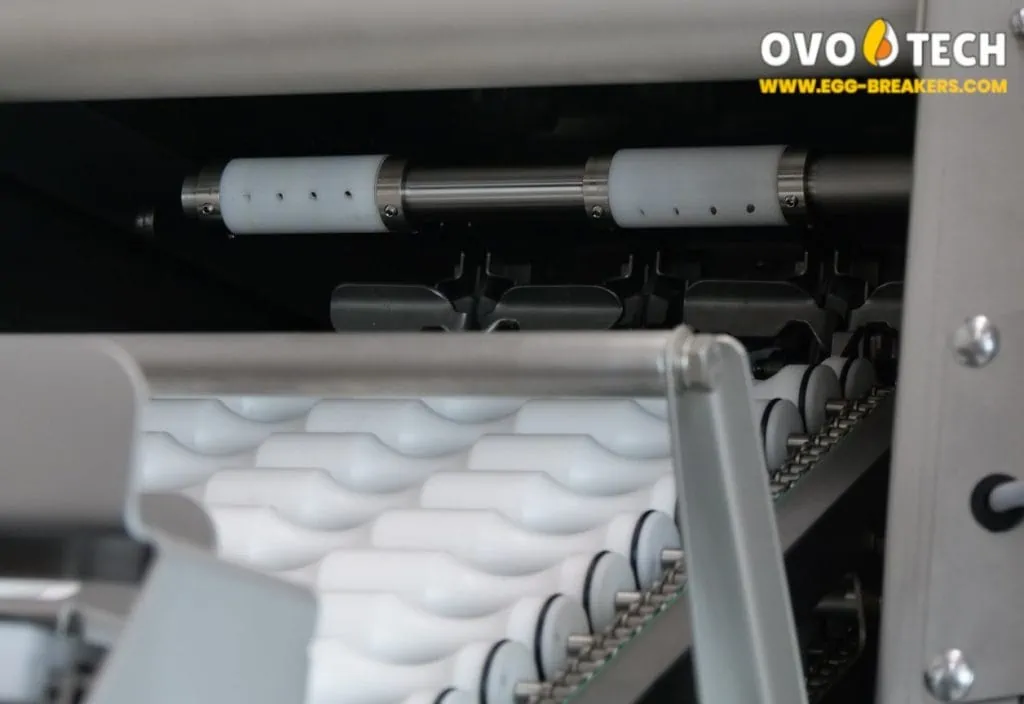

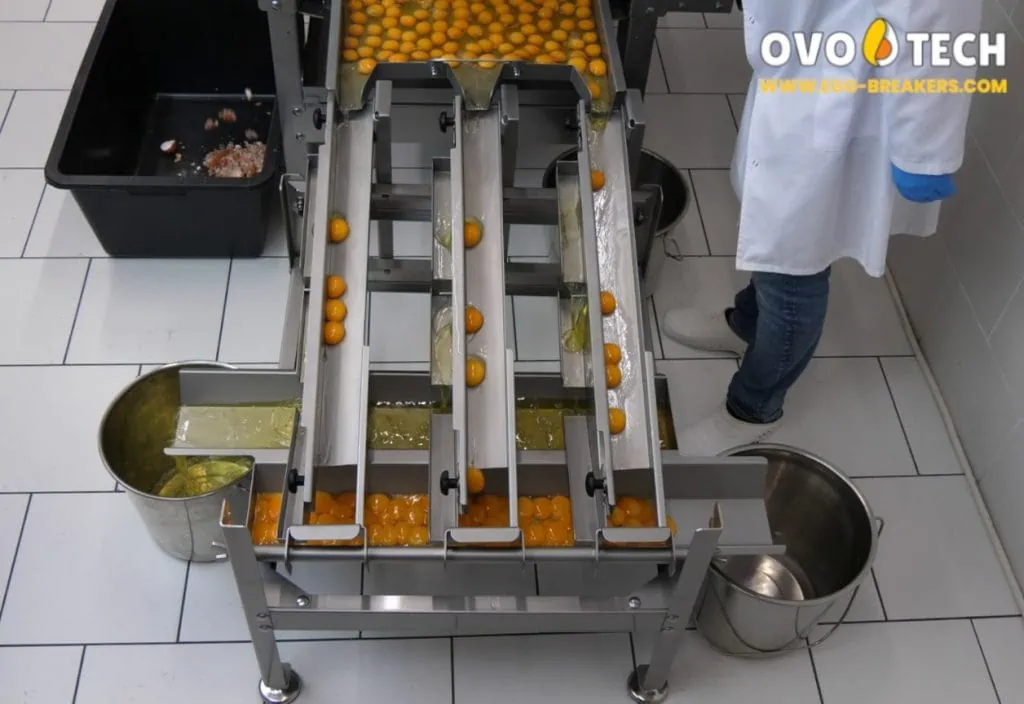

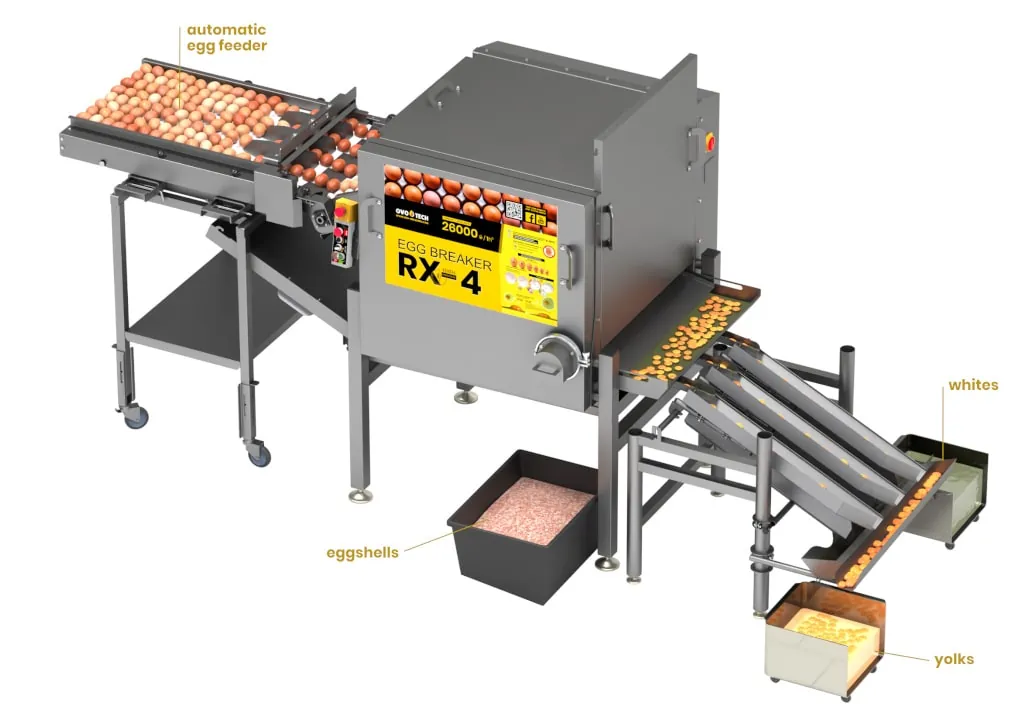

The RX-4 egg breaker uses a belt and roller feeder that feeds eggs into the breaking section. The high productivity of the machine is achieved through the use of innovative rotary breaking mechanisms. The machine breaks the eggshells using specially shaped knives, mimicking the work of human hands. This maximally hygienic method of breaking eggs is an innovation of OVO-TECH. Then, the broken eggs flow through a specially designed meander for additional quality control. After flowing through the meander, the eggs go to two parallel separators, where the yolk is separated from the white. The volume of shells from the broken eggs is reduced using an integrated UZS shell crusher. This ensures that the volume of shells is reduced by 95%. After operation, the machine can be washed using its integrated CIP system . The machine is made of INOX EN 1.4301 (AISI 304) steel.
FAQ
What is the capacity of the RX series egg breakers?
The capacity of the RX series ranges from 3,000 to 39,000 eggs per hour.
Does the RX series actually replace manual labor?
Yes, the RX series capacity allows replacing the work of 5 to 85 people while maintaining the highest hygiene standards.
Do I need to sort eggs by size before breaking?
No, RX machines do not require manual calibration and handle eggs in sizes from S to XL.
What is the breaking efficiency of the RX series machines?
The breaking efficiency is 99% thanks to a blade system that mimics the motion of human hands.
Is there a risk of shell fragments getting into the egg mass?
The risk is minimized to zero thanks to an innovative precision breaking mechanism.
What happens when the yolk breaks during the process?
RX machines feature a special controller that allows removal of a broken yolk, protecting the purity of the egg white.
What type of steel are the breaking blades made of?
All components in contact with the egg are made of AISI 304 stainless steel (EN 1.4301).
Can the machine be cleaned using industrial washers?
Yes, the steel construction is resistant to high temperatures and steam sterilization. The machine is also equipped with a CIP self-cleaning system. It takes only 15 minutes to clean the machine using detergent and a water connection.
What technology does the customer get when choosing the RX series?
The customer gets a maintenance-free, hygienic technology that provides "peace of mind" when separating yolk from egg white.
Is the RX series suitable for smaller facilities?
Yes, the RX-0 with a capacity of up to 3,000 eggs/hour replaces the work of 5 people, making it ideal for smaller bakeries and confectioneries.
Technical parameters
| Capcity | 26 000 eggs/hour |
| Drain | x |
| Electricity consumption | 1,5-2kWh/h |
| Height | 1805 / 71 |
| Lenght | 4676 / 184 |
| Material | INOX EN 1.4301 (AISI 304) |
| Minimal workspace (mm) | 5700 x 2300 / 224 x 91 |
| Noise emission | 69 dB |
| Replaces | 56 persons |
| Water supply | water from client's installation |
| Weight (kg/lbs) | 475 / 1047 |
| Width | 1291 / 50 |
