Egg breakers

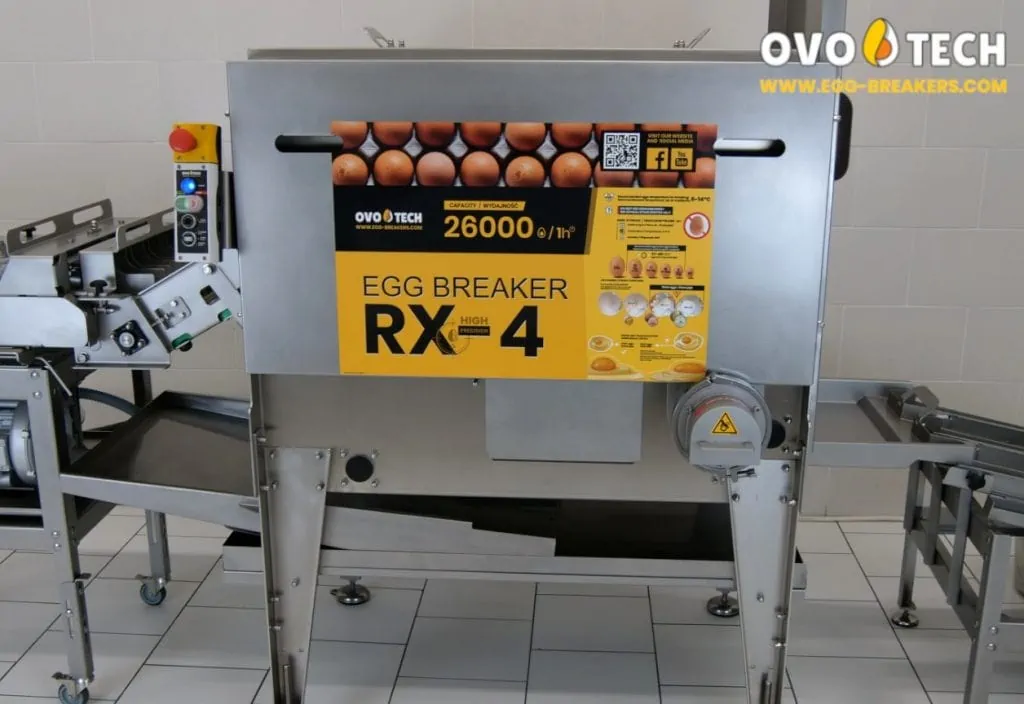

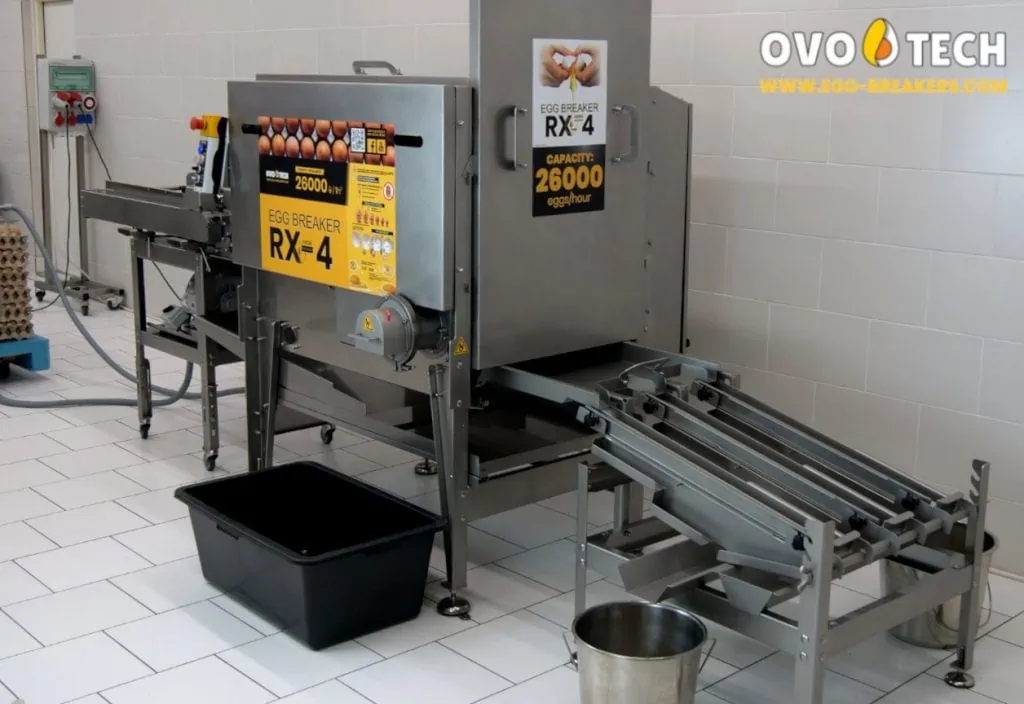

RX-4 egg breaker

  • 26 000 eggs/hour
  • Replaces 56 persons

Product description

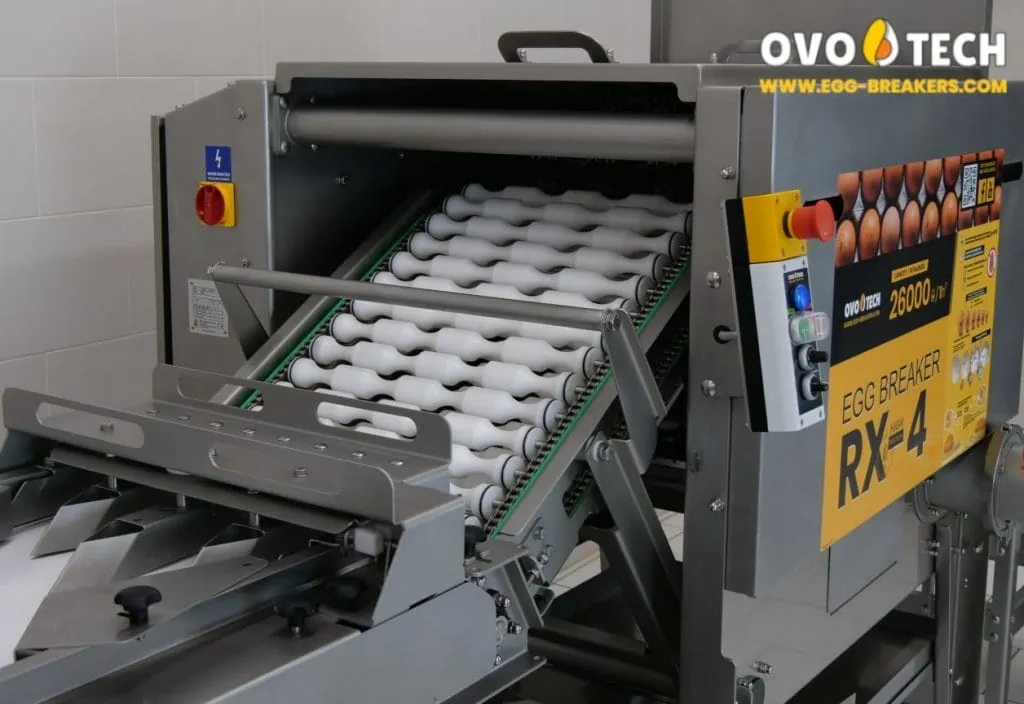

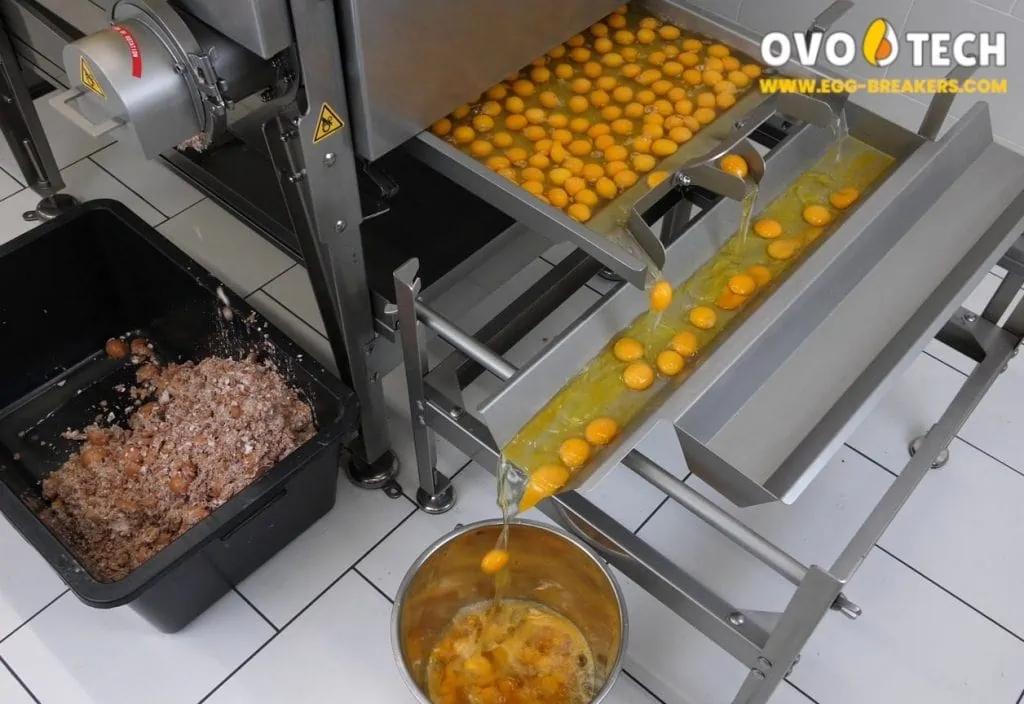

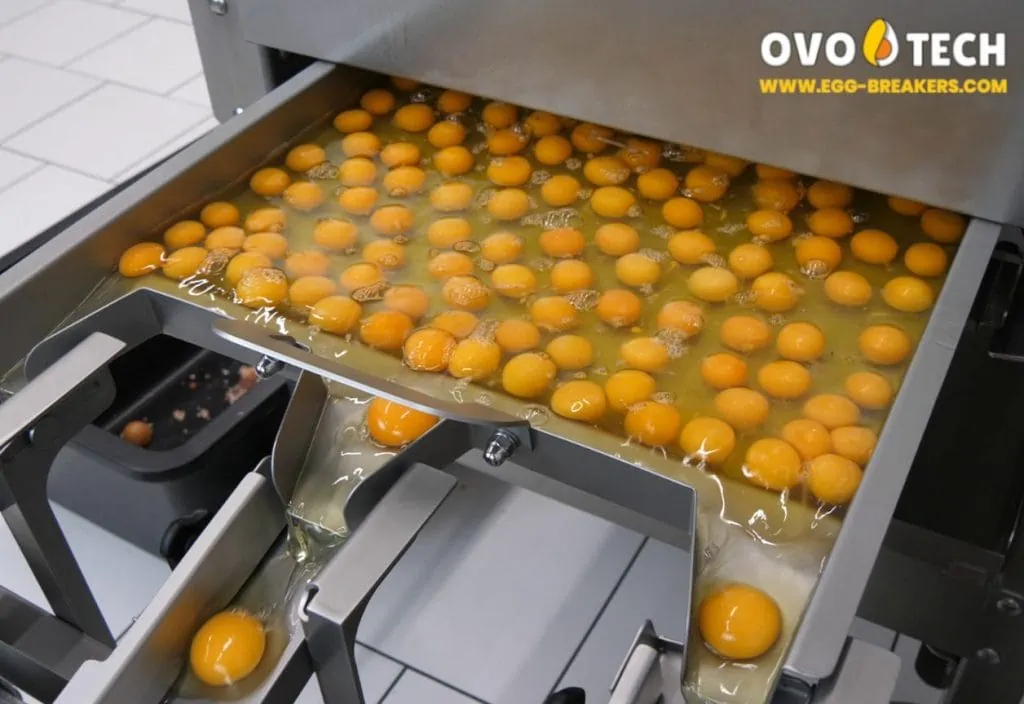

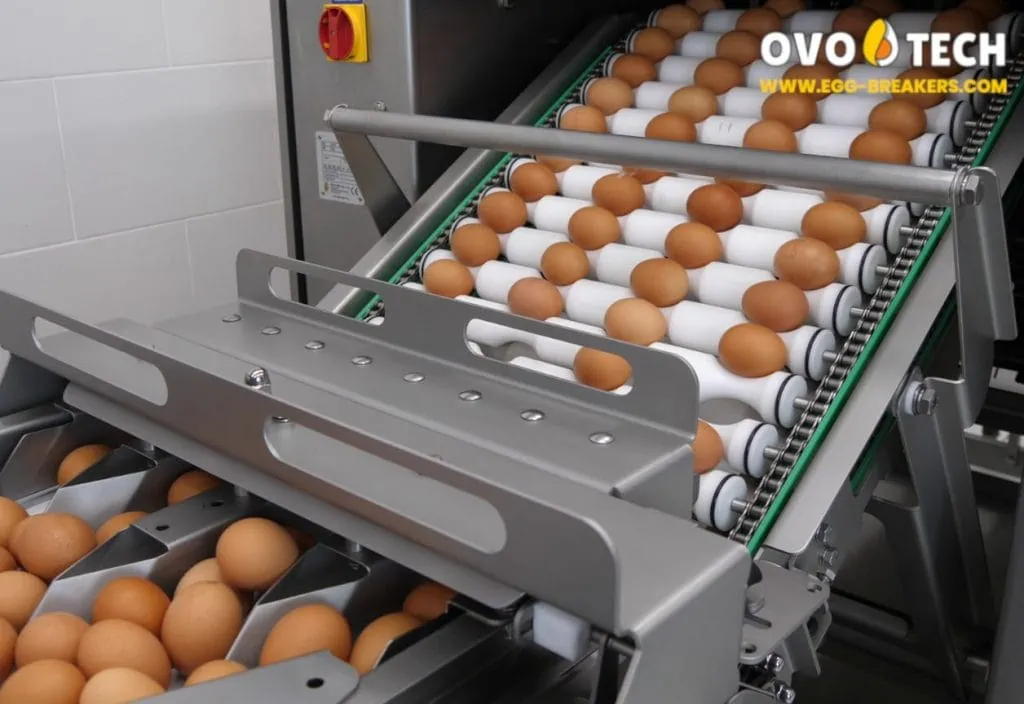

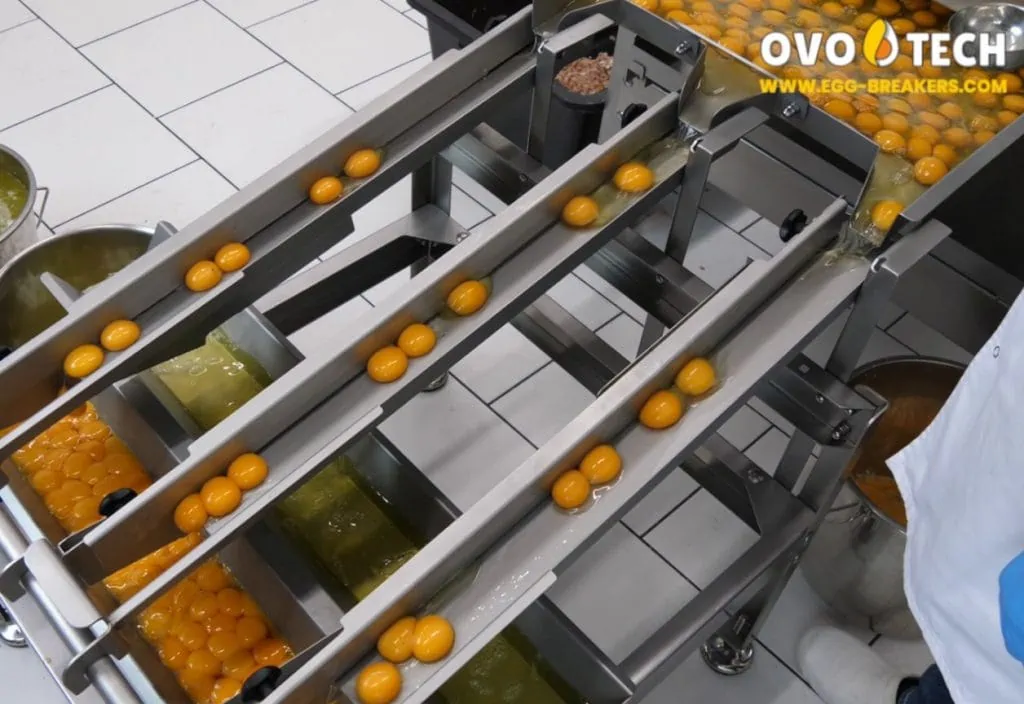

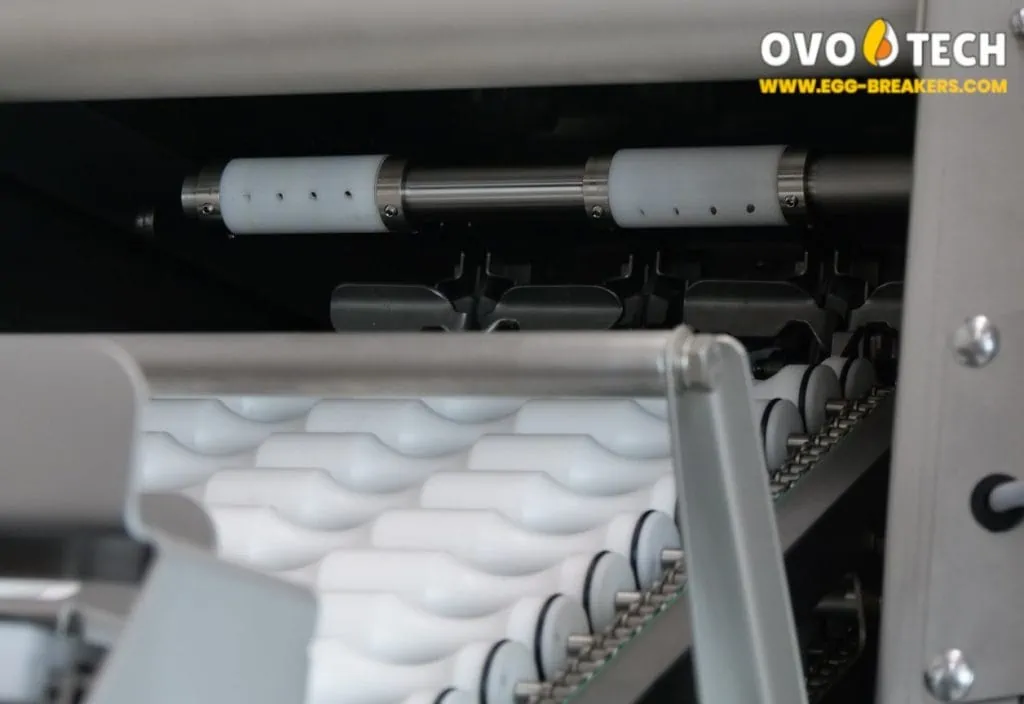

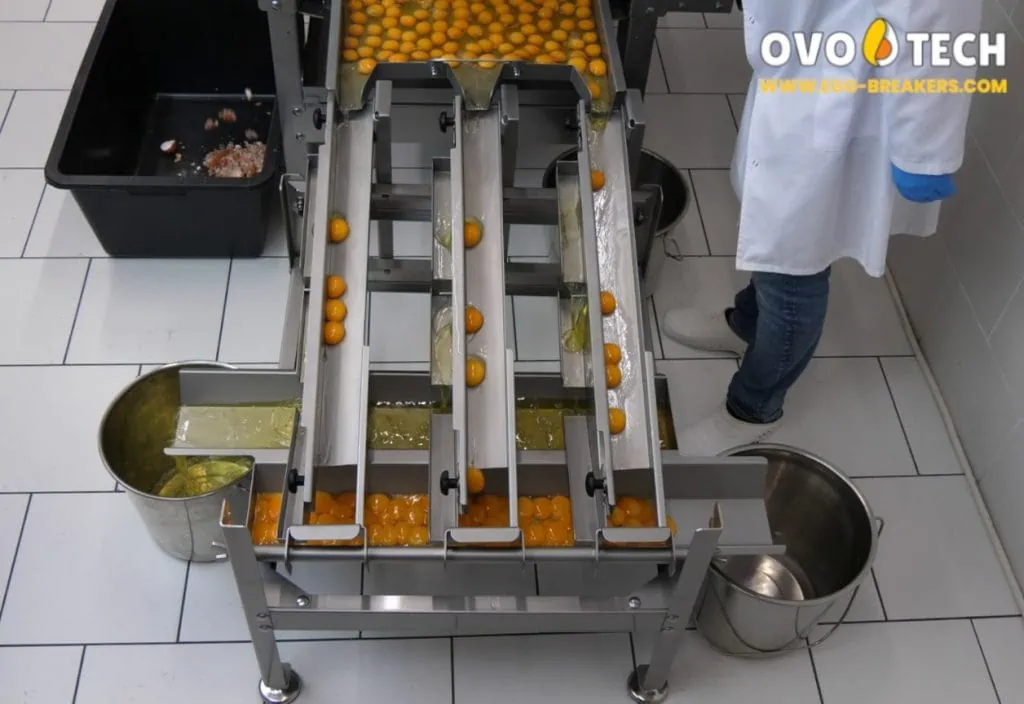

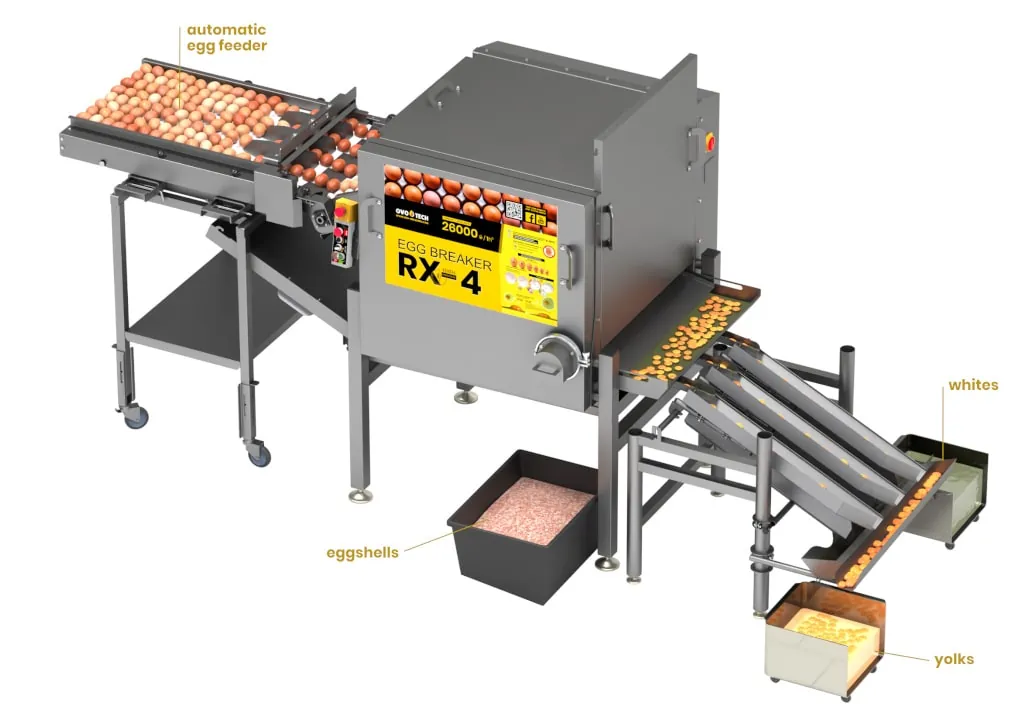

The RX-4 egg breaker uses a belt and roller feeder that feeds eggs into the breaking section. The high productivity of the machine is achieved through the use of innovative rotary breaking mechanisms. The machine breaks the eggshells using specially shaped knives, mimicking the work of human hands. This maximally hygienic method of breaking eggs is an innovation of OVO-TECH. Then, the broken eggs flow through a specially designed meander for additional quality control. After flowing through the meander, the eggs go to two parallel separators, where the yolk is separated from the white. The volume of shells from the broken eggs is reduced using an integrated UZS shell crusher. This ensures that the volume of shells is reduced by 95%. After operation, the machine can be washed using its integrated CIP system . The machine is made of INOX EN 1.4301 (AISI 304) steel.

Technical parameters

Capacity 26 000 eggs/hour
Material INOX EN 1.4301 (AISI 304)
Replaces 56 persons
Noise emission 69 dB
Lenght 4676 / 184
Width 1291 / 50
Height 1805 / 71
Minimal workspace (mm) 5700 x 2300 / 224 x 91
Weight (kg/lbs) 475 / 1047
Water supply water from client's installation
Drain x
Electricity consumption 1,5-2kWh/h
